Removing Air Cleaner Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

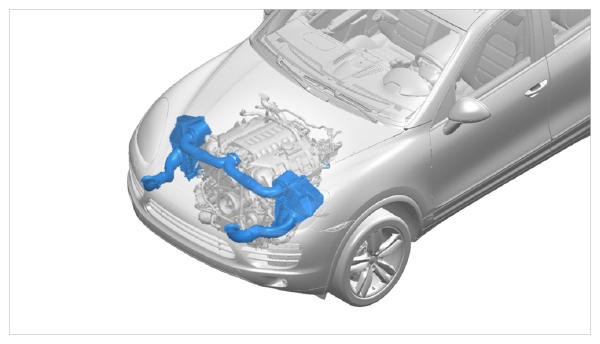

Fig 1: Identifying Air Cleaner Housing - V8 S

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

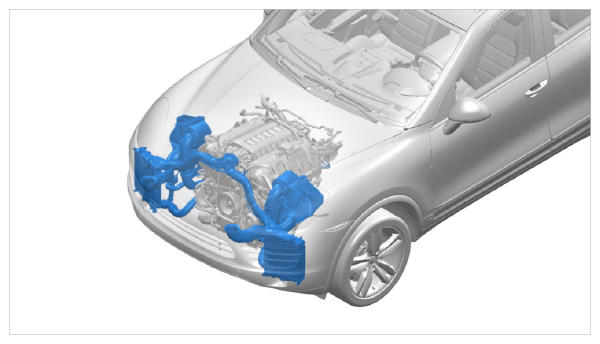

Fig 2: Identifying Air Cleaner Housing - V8 Turbo

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the air guide. → REMOVING AIR GUIDE - section on "Removing"

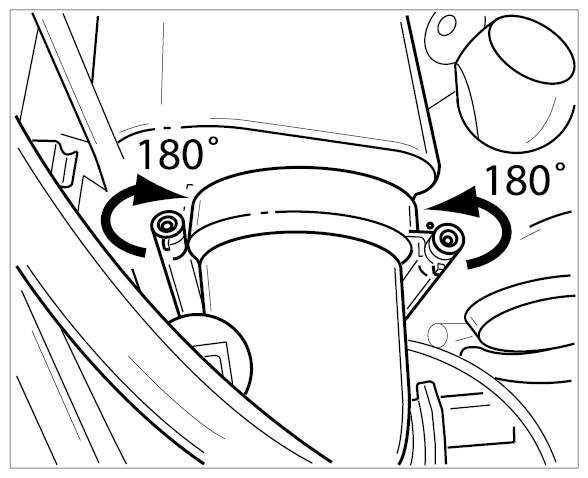

Loosen connections on the air cleaner covers. To do this, turn the bolts 180° and pull them out → Loosening connections on air cleaner . Pull off intake pipes.

Fig 3: Loosening Connections On Air Cleaner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

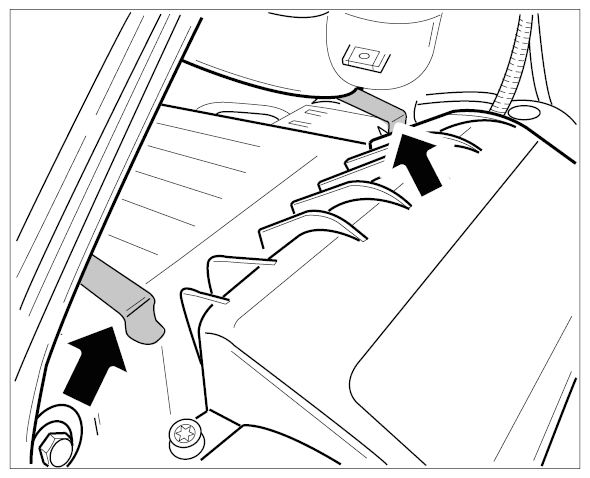

Open the cover on the air cleaner housing.
To do this, unclip the two fastening clamps -arrows- using a suitable tool.

Fig 4: Locating Fastening Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

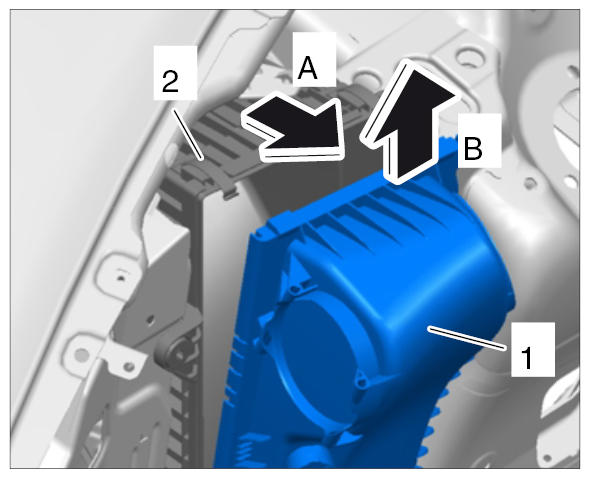

Fold the cover -1- of the air cleaner housing -2- forward at the top -A- and pull it out in an upward direction -B- .

Fig 5: Removing Cover On Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air-cleaner element. → REPLACING AIR-CLEANER ELEMENT - section on "Replacing"

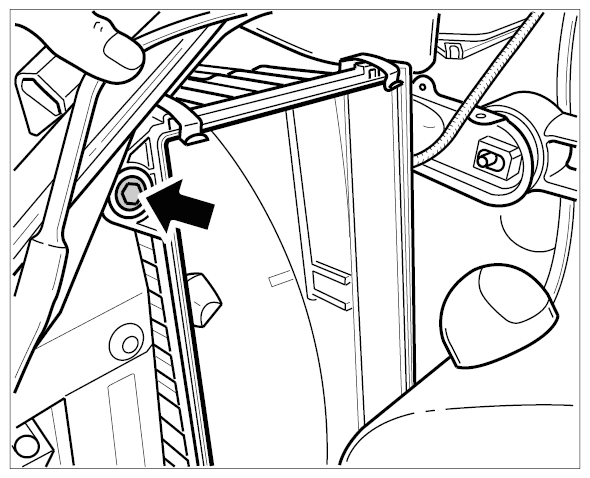

Loosen the fastening screw -arrow- on the air cleaner housing.

Fig 6: Locating Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

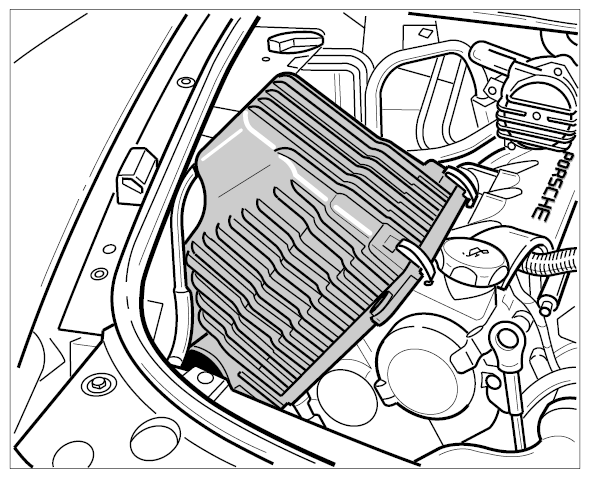

Lift the air cleaner housing, tip it towards the engine and remove it from the engine compartment. → Air cleaner housing

Fig 7: Identifying Air Cleaner Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
