Removing and installing final drive/transmission housing double sealing ring: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Unbolt rear wheels.
Remove differential (see Removal ).
Remove long flanged shaft (see Removal ).
Take bearing outer race (1) and adjusting shim (2) out of the transmission housing by hand.

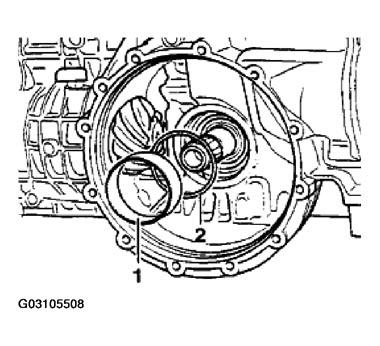

Fig 1: Removing Bearing Outer Race And Adjusting Shim
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The adjusting shim is calibrated and cannot be exchanged for a different shim.
Carefully pull out gasket with special tool VW 681.
NOTE: Special tool VW 681 must be applied behind the two sealing lips of the sealing ring. Do not apply to the outer circumference of the sealing ring, since otherwise the contact area in the transmission housing will be damaged. While levering it out, guide lever carefully.

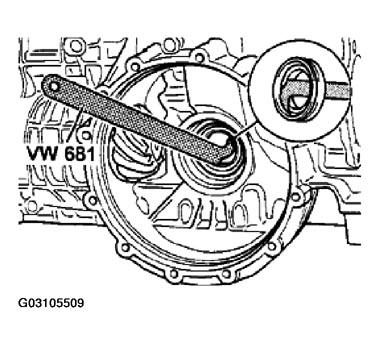

Fig 2: Applying Special Tool Behind Sealing Lips Of Sealing Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
