Removing and installing long flanged shaft: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove right rear wheel.
  2. Drain rear-axle oil (see Changing and checking transmission oil in final drive  ).
    NOTE:
    • Suction removal of the oil prevents rear-axle oil entering the ATF.
    • This would cause malfunctions of the hydraulic transmission control system.
  3. Uncouple right drive shaft on the transmission side.
  4. Unscrew three fastening screws for the mounting saddle.

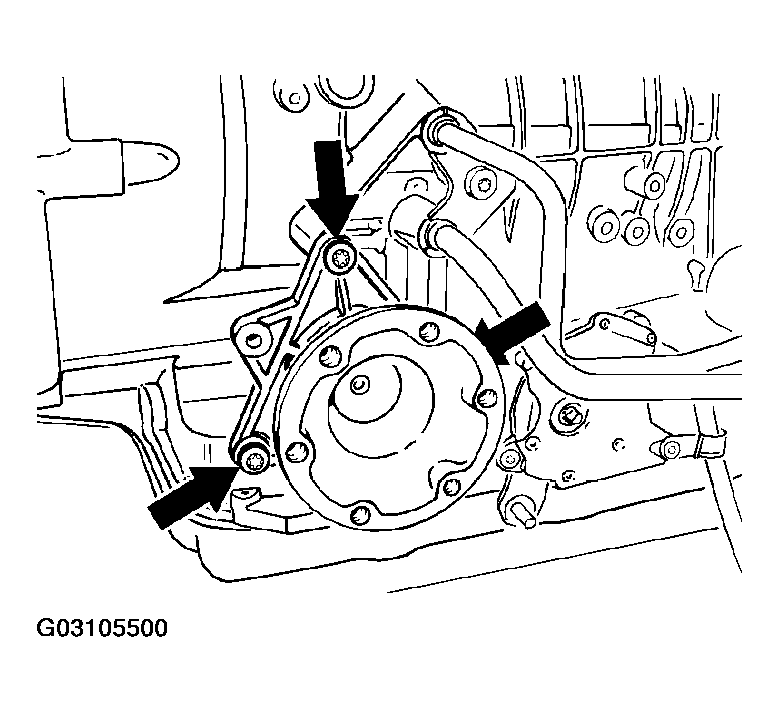

    Fig 1: Unscrewing Three Fastening Screws For Mounting Saddle
    G03105500Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Carefully pull out long flanged shaft.
