Removing and installing differential: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left rear wheel.
  2. Remove diagonal braces and rear axle carrier.
  3. Uncouple left drive shaft on the transmission side.
  4. Remove left connecting rod for stabilizer.
  5. Place oil collection pan under the transmission.
  6. Unscrew fastening screw for flanged shaft and pull out flange.

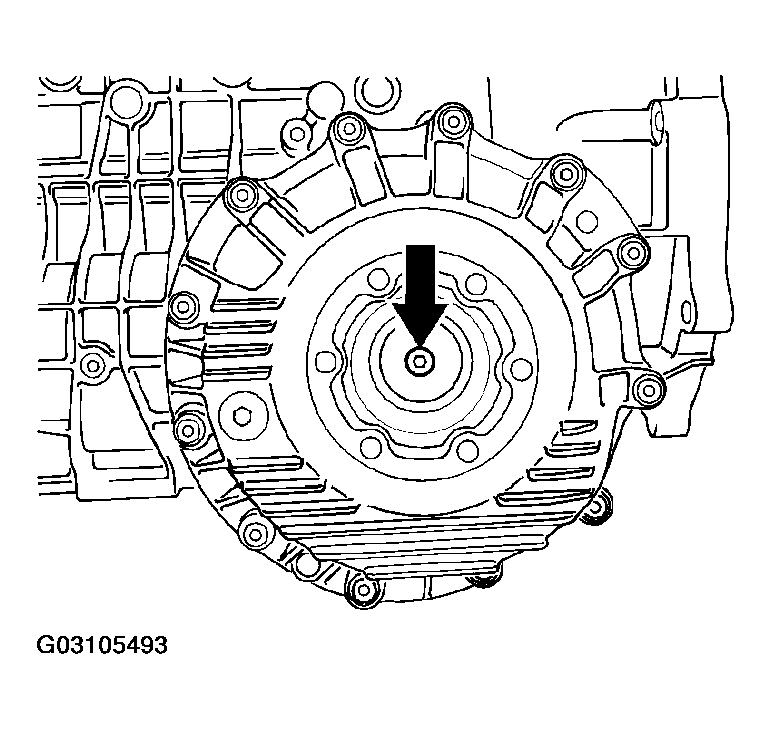

    Fig 1: Removing Flange Screw
    G03105493Courtesy of PORSCHE OF NORTH AMERICA, INC.
  7. Unscrew fastening screws for cover and remove cover.

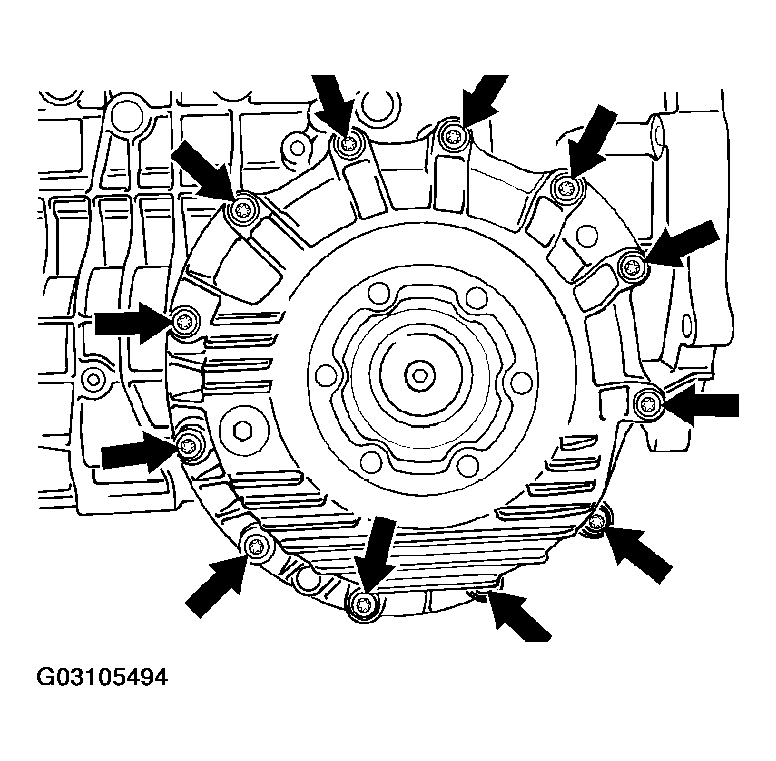

    Fig 2: Removing Cover & Fastening Screws
    G03105494Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE: Do not lose the tapered roller bearing outer ring and adjusting shim.

    The adjusting shim is calibrated and cannot be replaced by another shim.

  8. Remove differential.

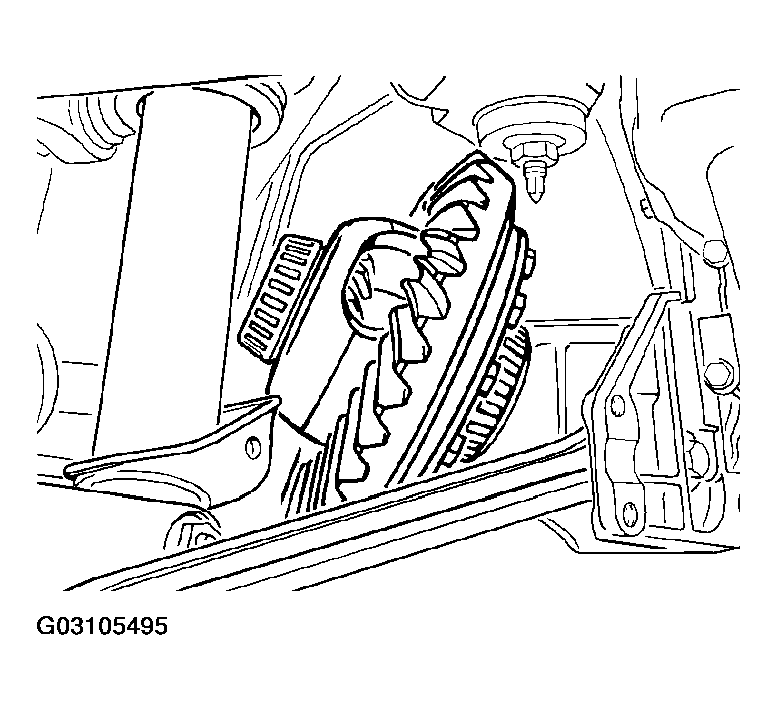

    Fig 3: Removing Differential
    G03105495Courtesy of PORSCHE OF NORTH AMERICA, INC.
  9. Remove tapered roller bearing outer ring and adjusting shim from the transmission housing.
    NOTE: The adjusting shim is calibrated and cannot be replaced by another shim.
