Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install front-axle carrier.
→ WM 400119 REMOVING AND INSTALLING FRONT AXLE (ALL MODELS) - section on "Installing".

→ 4001TW TIGHTENING TORQUES FOR FRONT AXLE
Fit universal joint at the steering spindle. Use new fastening screw!
1. 2.1. Precondition: Steering wheel must be in center position.

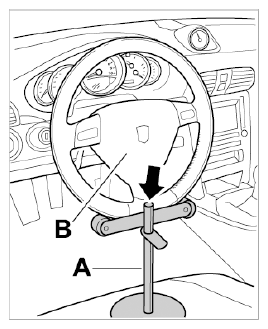

  Fig 1: Identifying Steering-Wheel Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Fit universal joint on the steering spindle.
  Fit the universal joint on the steering spindle while paying attention to the installation position -see arrows- .

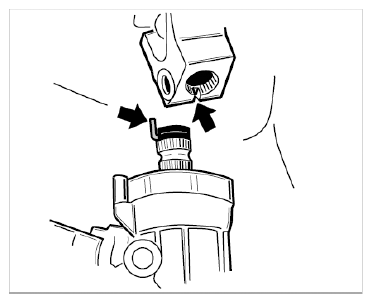

  Fig 2: Fitting Universal Joint For Steering Gear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Fit and tighten M8 screw -arrow- on the universal joint. → Tightening torque: 23 Nm (17 ftlb.)

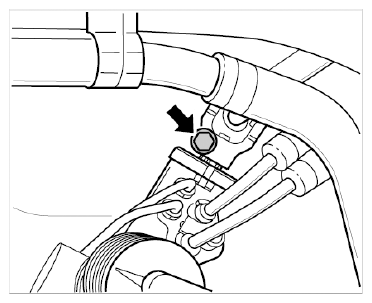

  Fig 3: Locating Universal Joint Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install front final drive.
→ 398819 REMOVING AND INSTALLING FRONT FINAL DRIVE - section on "Installing"
Install the filler neck.
→ 200719 REMOVING AND INSTALLING FILLER NECK - TURBO - section on "Installing"
Install fuel level sensor.
→ 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR - TURBO - section on "Installing"
Fuel the vehicle.
→ 200317 DRAINING AND FILLING FUEL - TURBO
Connect the battery.
→ 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
Check all lines and connections for leaks.
Install rear part of front right wheel housing liner.
→ 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - section on "Installing"
Install underbody panelling.
→ 519319 REMOVING AND INSTALLING CENTRE COVER - section on "Installing"

→ 519419 REMOVING AND INSTALLING REAR COVER - Installing

→ 519219 REMOVING AND INSTALLING FRONT COVER - section on "Installing"
Install front wheels.
Use special tool Socket-wrench insert 300 .

→ 44051900 REMOVING AND INSTALLING WHEEL - section on "Installing"

Wheel with central bolt. Use special tools Socket-Wrench Insert 9796 and Assembly Aid 9794 .

→ 440519 REMOVING AND INSTALLING WHEEL WITH CENTRAL BOLT - section on "Installing"
Remove steering-wheel holder.
Remove protective covers from the vehicle.
Perform suspension alignment.
→ WM 449503 SUSPENSION ALIGNMENT, COMPLETE .
Perform a test drive.
