Subsequent Work - Carrera 2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install front-axle carrier.
→ WM 400119 REMOVING AND INSTALLING FRONT AXLE (ALL MODELS) - section on "Installing".

→ 4001TW TIGHTENING TORQUES FOR FRONT AXLE
Fit universal joint at the steering spindle. Use new fastening screw!
→ 489019 REMOVING AND INSTALLING POWER-STEERING GEAR - section on "Installing".
1. 2.1. Precondition: Steering wheel must be in center position.

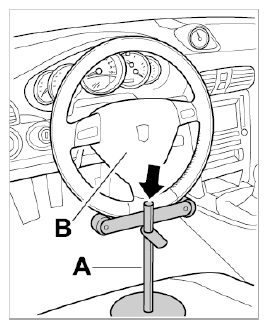

  Fig 1: Identifying Steering-Wheel Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Fit universal joint on the steering spindle.
  Fit universal joint on the steering spindle while paying attention to the installation position -see arrows- .

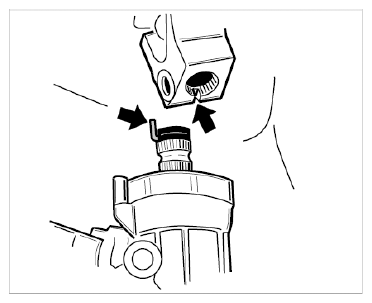

  Fig 2: Fitting Universal Joint For Steering Gear
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Screw in and tighten M8 screw -arrow- on the universal joint.
  → Tightening torque: 23 Nm (17 ftlb.)

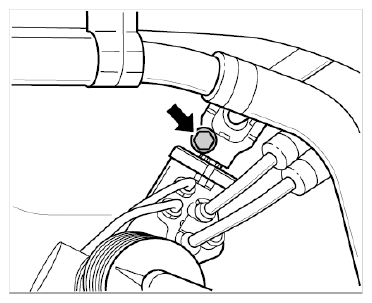

  Fig 3: Locating Universal Joint Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit restraining straps on the fuel tank.
Observe installation position (left to right).

Fit restraining straps -1- and screw in and tighten screws -2- .

→ Tightening torque: 23 Nm (17 ftlb.)

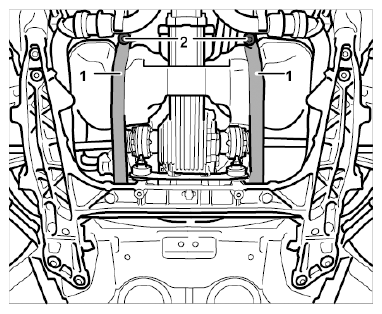

Fig 4: Identifying Restraining Straps (Shown On Carrera 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install diagonal braces.

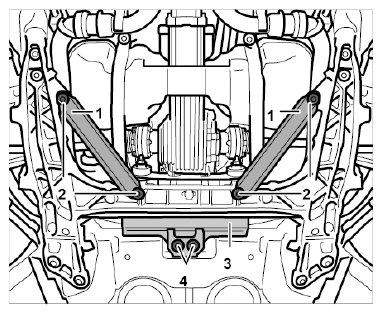

Fig 5: Identifying Diagonal Brace (Shown On Carrera 4)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Install diagonal braces -1- .
  Fit diagonal braces -1- and screw in and tighten screws -2- .

  → Tightening torque: 100 Nm (74 ftlb.)
Fit support for final drive.
→ Tightening torque: 65 Nm (48 ftlb.)
Install plastic holder for coolant pipes.
Install filler neck.
→ 200719 REMOVING AND INSTALLING FILLER NECK - section on "Installing"
Install fuel level sensor.
→ 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR - section on "Installing"
Fuel the vehicle.
→ 2010EN EMPTYING AND FILLING THE FUEL TANK
Install carrier plate for battery.
→ Tightening torque: 23 Nm (17 ftlb.) .
Install the battery.
→ 270619 REMOVING AND INSTALLING BATTERY - section on "Installing"
Start the vehicle.
Check all lines and connections for leaks.
Install rear part of front right wheel housing liner.
→ 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - section on "Installing"
Install underbody panelling.
→ 519319 REMOVING AND INSTALLING CENTRE COVER - section on "Installing"

→ 519419 REMOVING AND INSTALLING REAR COVER - Installing

→ 519219 REMOVING AND INSTALLING FRONT COVER - section on "Installing"
Install front wheels.
→ 44051900 REMOVING AND INSTALLING WHEEL - section on "Installing"
Remove steering-wheel holder.
Perform suspension alignment.
→ 44950300 SUSPENSION ALIGNMENT, COMPLETE
Perform a test drive.
