Preliminary Work - Carrera 2

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

Set the steering wheel with the wheels in straight-ahead position. If this is not done, the airbag contact unit will have to be put in center position after installation of the steering gear.

1. Raise the vehicle at the prescribed jacking points.

   → 4X00IN01 LIFTING THE VEHICLE

   WARNING: Vehicle can fall down

   • Risk of squashing or crushing
   • Risk of damage to the vehicle

   → Do not place any solid objects under the raised vehicle.

   → Ensure that the lifting platform is prevented from lowering.

   → Remove solid objects before lowering the vehicle.

   → Raise the vehicle only at the jacking points provided.

   → The outer jacking points should be used primarily.

2. Place a warning sign in a clearly visible position in the work area or on the vehicle.

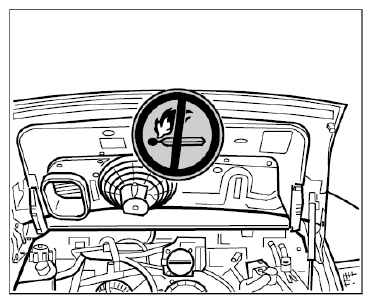

   Fig 1: Example Of Warning Sign

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Place protective covers on the vehicle.
4. Move steering wheel into center position.

   Use the steering-wheel holder -A-  to secure the steering wheel in center position.

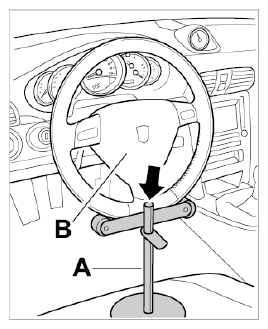

   Fig 2: Identifying Steering-Wheel Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Use only steering wheel holders -A- that do not project into the area of the airbag unit -B-.
   • Shorten guiding rod at the top -arrow- if necessary.

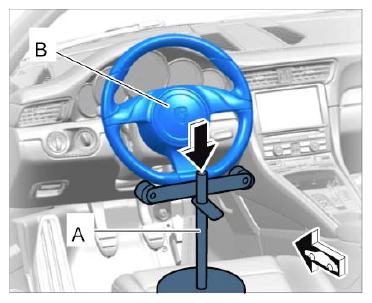

     Fig 3: Locating Steering-Wheel Holder Guiding Rod

     Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove front wheels.

   Use special tool socket-wrench insert P 300  to avoid damaging the rims.

   → 44051900 REMOVING AND INSTALLING WHEEL - section on "Removing"

6. Disconnect and remove the battery.

   → 270619 REMOVING AND INSTALLING BATTERY - section on "Removing"

7. Remove carrier plate for battery.

   Unscrew four M8 nuts and remove the lid. Check seal for damage and replace it if necessary.

8. Remove fuel level sensor.

   → 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR  - section on "Removing"

9. Empty the fuel tank.

   Fuel transfer unit WE WE1262  should be used.

   → 2010EN EMPTYING AND FILLING THE FUEL TANK

10. Remove rear part of front right wheel housing liner.

    → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER - section on "Removing"

11. Remove filler neck.

    → 200719 REMOVING AND INSTALLING FILLER NECK  - section on "Removing"

12. Remove underbody panelling.

    → 519419 REMOVING AND INSTALLING REAR COVER - Removing

    → WM 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY - section on "Removing".

    → 519219 REMOVING AND INSTALLING FRONT COVER - section on "Removing"

13. Remove holder for coolant pipes -2-  in the center tunnel.

    Unscrew four hexagon-head bolts -1-  and unclip plastic holders on the coolant pipes and vent line -arrows-  .

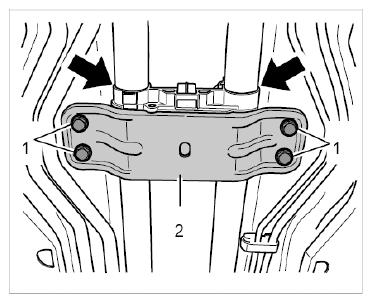

    Fig 4: Locating Holder For Coolant Pipes

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Remove the diagonal braces.

    (Observe marking: R = Right, L = Left)

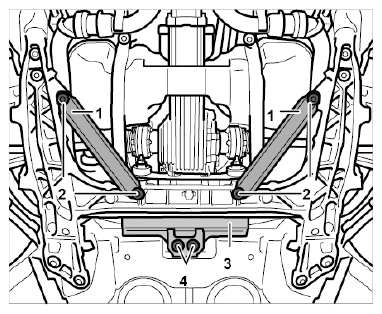

    Fig 5: Identifying Diagonal Braces

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 14.1. Remove diagonal braces -1-  .

       Unscrew screws -2-  and remove diagonal braces -2-  .

    2. 14.2. Remove crash stop (all-wheel drive only).

       Loosen and remove screws -4-  and then remove the crash stop -3-  .

15. Remove restraining straps on the fuel tank.

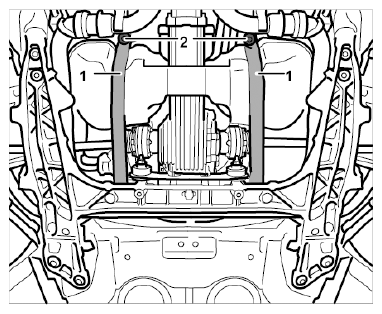

    Fig 6: Identifying Restraining Straps

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 15.1. Loosen and remove screws -2-  and then remove the restraining straps -1-  .
    2. 15.2. Remove fuel tank cover.
    3. 15.3. Re-insert and screw on restraining straps -1-  . Only tighten screws -2-  hand-tight.
16. Remove universal joint at the steering spindle.
    1. 16.1. Precondition: Steering wheel must be in center position.
    2. 16.2. Remove universal joint.

       Make sure not to pull the red lug -4- off as well because this will only increase the amount of assembly work required.

       Loosen screw -1-  on the universal joint -2-  and remove it. Pull universal joint -2-  off the steering spindle -3-  .

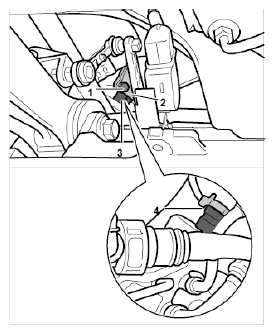

       Fig 7: Identifying Universal Joint

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
17. Remove front-axle cross member.

    → WM 400119 REMOVING AND INSTALLING FRONT AXLE (ALL MODELS) - section on "Removing".

18. Disengage coolant pipes and secure with tie-wraps.

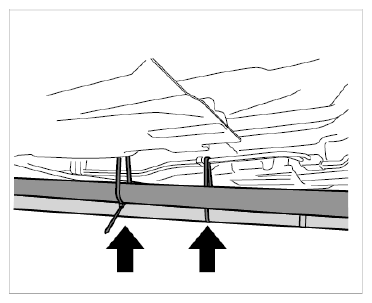

    Fig 8: Disengaging Coolant Pipes

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
