Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install cylinder head cover.
→ 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER .
Fit cover for positive crankcase ventilation.

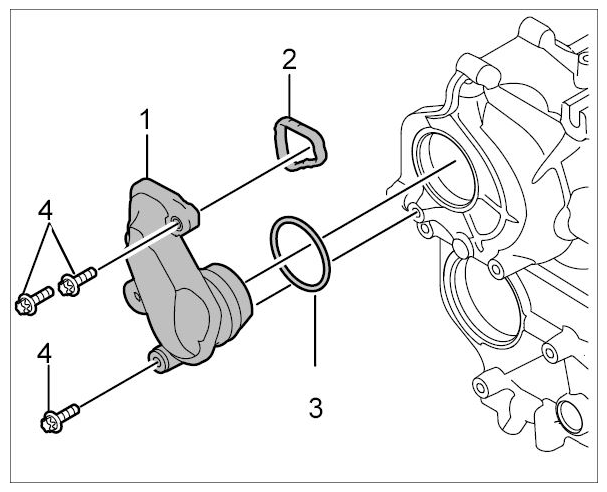

1. 2.1. Fit cover for cylinder bank 1-3 -1- with a new O-ring and molded seal and secure with three external Torx screws (E10, M6 x 25) -4- .

  Fig 1: Identifying Cover On Positive Crankcase Ventilation 1-3
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

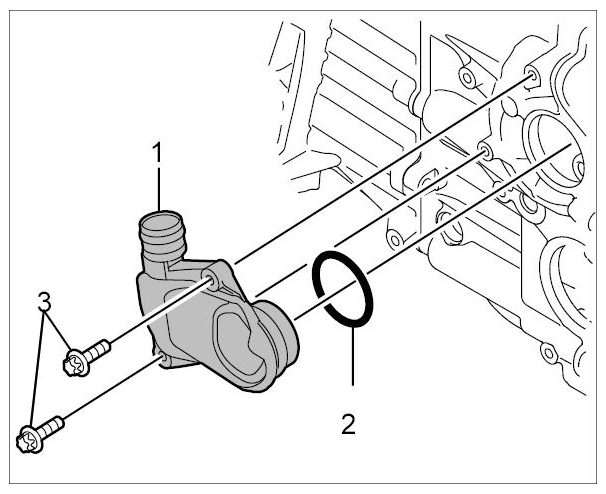

2. 2.2. Fit cover for cylinder bank 4-6 -1- with a new O-ring and secure with two external Torx screws (E10, M6 x 25) -3- .
  → Tightening torque: 13 Nm (9.5 ft. lb.)

  Fig 2: Identifying Cover On Positive Crankcase Ventilation 4-6
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install high-pressure pump.
→ 246319 REMOVING AND INSTALLING HIGH-PRESSURE PUMP .

→ Tightening torque: 13 Nm (9.5 ft. lb.)
Install vacuum pump.
→ 477619 REMOVING AND INSTALLING VACUUM PUMP .

→ Tightening torque: 13 Nm (9.5 ft. lb.)
Fit spark plugs.
→ 287020 REMOVING AND INSTALLING SPARK PLUGS .
Fit bar ignition modules.
1. 6.1. Fit and tighten one internal Torx (T30) countersunk screw (M6 x 16) on each.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
2. 6.2. Plug in cable plugs for bar ignition modules, hall sender and solenoid hydraulic valve (VVS) and screw on two ground cables for each.
  → Tightening torque: 10 Nm (7.5 ft. lb.)
Fit heat shield.
1. 7.1. Insert and tighten four external Torx screws (M6 x 12).
  → 261219 REMOVING AND INSTALLING HEAT SHIELD .

  → Tightening torque: 10 Nm (7.5 ft. lb.)
Fit holder for rear silencer.
1. 8.1. Insert and tighten four external Torx screws (M8 x 20).
  → Tightening torque: 23 Nm (17 ft. lb.)
Fit exhaust manifolds with a new seal.
1. 9.1. Insert and tighten nine external Torx screws (M8 x 21) on each. Observe tightening sequence.
  → 261019 REMOVING AND INSTALLING EXHAUST MANIFOLD WITH CATALYTIC CONVERTER .

  → Tightening torque: 23 Nm (17 ft. lb.)
Install rear silencer.
→ 263319 REMOVING AND INSTALLING REAR SILENCER .
Install engine carrier.
→ 103019 REMOVING AND INSTALLING ENGINE CARRIER .
Install the engine.
→ 100119 REMOVING AND INSTALLING ENGINE .
