Installing Wire Harness For Roll-Over Protection System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

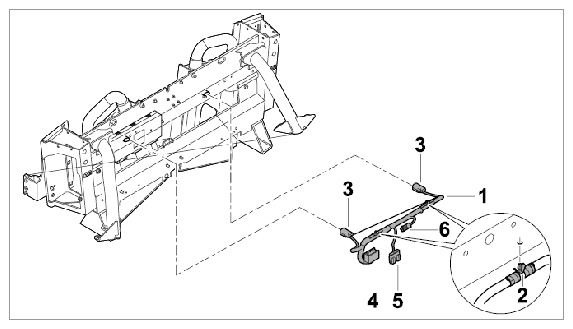

Fig 1: Overview Of Connectors For Wire Harness And Roll-Over Protection System
G09831357Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Wire harness for roll-over protection system
  2. Retaining clips
  3. Roll-over bar connector
  4. Convertible top control unit connector
  5. Plug connection for wire harness for roll-over protection system to rear wire harness
  6. Plug connection for motor for convertible-top compartment lid drive mechanism
  1. Position wire harness for roll-over protection system -1-  on the frame and clip it in at the retaining clips -2-  .
  2. Connect plug connection for convertible-top compartment lid drive motor -6-  until it engages securely. → Removing Motor For Convertible-Top Compartment Lid Drive - section on "Removing"
  3. Connect plug connection for wire harness for roll-over protection system to rear wire harness -5-  until it engages securely. → Installing Frame For Roll-Over Protection System - section on "Installing"
  4. Plug in connector on convertible top control unit -4-  and lock it until it engages securely. → Installing Convertible Top Control Unit - section on "Installing"
