Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Raise the engine.
1. 1.1. Support the engine at the oil pan using the Hydraulic Jack HH2 WE 1033 and transmission jack plate of Transmission Jack V.A.G 1383 A WE 1082.
2. 1.2. Alternative to transmission jack plate:
  Screw on the Mounting Peg 9163/2 in the middle using a wooden board (40 x 30 cm) and use it as a support.

  → Mounting peg

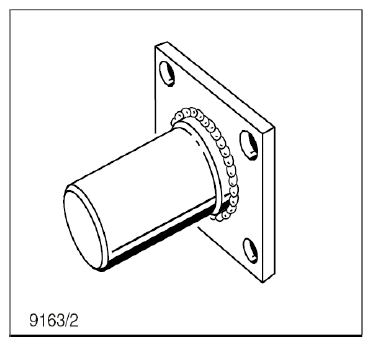

  Fig 1: Identifying Mounting Peg
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Slowly lift the engine with the hydraulic jack.
4. 1.4. Fit and tighten two special M12 nuts (internal Torx, screw insert T55) -1- on the engine mounting (hydraulic mount) at the left and right.
  → Tightening torque: 85 Nm (63 ft. lb.)

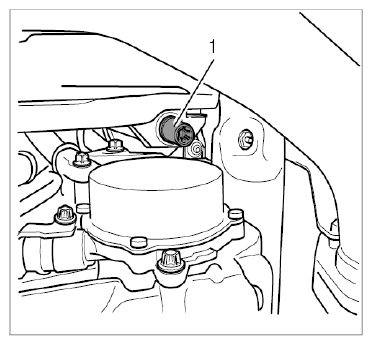

Fig 2: Identifying Engine Mounting (Hydraulic Mount) Special Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install tailpipe covers.
→ 263519 REMOVING AND INSTALLING TAILPIPE COVER - TURBO - section on "Installing"
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - TURBO - section on "Installing"
Remove protective covers from the vehicle.

WARNING: Objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Raise the engine.
1. 1.1. Support the engine at the oil pan using the Hydraulic Jack HH2 WE 1033 and transmission jack plate of Transmission Jack V.A.G 1383 A WE 1082 .
2. 1.2. Alternative to transmission jack plate:
  Screw on the Mounting Peg 9163/2 in the middle using a wooden board (40 x 30 cm) and use it as a support.

  → Mounting peg

  Fig 1: Identifying Mounting Peg
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Slowly lift the engine with the hydraulic jack.
4. 1.4. Fit and tighten two special M12 nuts (internal Torx, screw insert T55) -1- on the engine mounting (hydraulic mount) at the left and right.
  → Tightening torque: 85 Nm (63 ft. lb.)

  Fig 2: Identifying Engine Mounting (Hydraulic Mount) Special Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install tailpipe covers.
→ 263519 REMOVING AND INSTALLING TAILPIPE COVER - TURBO - section on "Installing"
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - TURBO - section on "Installing"
Remove protective covers from the vehicle.
