Removing Knock Sensor, Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove throttle housing.

    → WM 244219 REMOVING AND INSTALLING THROTTLE HOUSING (TURBO COUPE, TURBO S COUPE, TURBO CABRIO & TURBO S CABRIO)- section on "Removing"  .

  2. Detach and swivel out compressor.

    → WM 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR- section on "Loosening"  .

  3. Remove knock sensor.
    1. 3.1. Pull off cable plug -2-  .

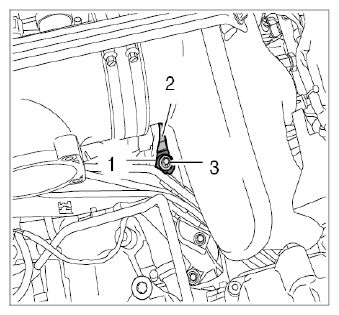

      Fig 1: Identifying Knock Sensor (Cylinder Bank 4-6)
      G09819849Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Unscrew screw -3-  and remove knock sensor -1-  .
