Removing Knock Sensor, Cylinder Bank 1-3

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Lower the engine.
Lower the engine by max. 40 mm.

Support the engine with a jack and retainer plate 9592 .

Loosen and screw off M12 collar nuts on the engine mounting. Carefully lower the engine using the jack.
Remove fuel filter.
→ 206019 REMOVING AND INSTALLING FINE FUEL FILTER - section on "Removing".
Remove secondary-air pump.
→ 26651900 REMOVING AND INSTALLING SECONDARY-AIR PUMP - section on "Removing"
Remove oil-filter console.
→ 173319 REMOVING AND INSTALLING OIL-FILTER CONSOLE - section on "Removing".
Remove center intake-air distributor.
→ 244619 00 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - section on "Removing"
Remove left intake-air distributor.
→ 244619 00 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - section on "Removing"
Remove shut-off valve.
→ 266919 REMOVING AND INSTALLING SHUT-OFF VALVE - section on "Removing"
Remove additional coolant pump.
→ 194519 REMOVING AND INSTALLING ADDITIONAL COOLANT PUMP - section on "Removing"
Remove knock sensor.
1. 9.1. Pull off cable plug -3- .

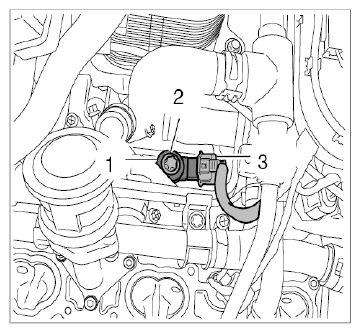

  Fig 1: Identifying Knock Sensor (Cylinder Bank 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 9.2. Unscrew screw -2- and remove knock sensor -1- .
