Installing Knock Sensor, Cylinder Bank 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install knock sensor.
1. 1.1. Fit knock sensor -1- with screw -2- and align it. Then tighten screw.
  → Tightening torque: 20 Nm (15 ft. lb.) +/-2 Nm (+/-1.5 ft. lb.)

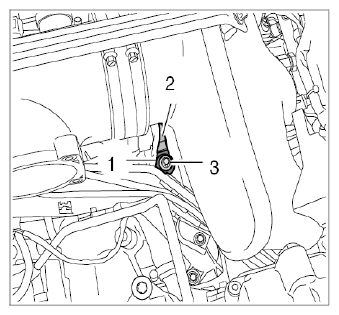

  Fig 1: Identifying Knock Sensor (Cylinder Bank 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Push on cable plug -3- .
Insert and fit compressor.
→ WM 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR- section on "Securing" .

→ Tightening torque: 23 Nm (17 ft. lb.)
Install throttle housing.
→ 244219 REMOVING AND INSTALLING THROTTLE HOUSING - section on "Installing"

→ Tightening torque: 10 Nm (7.5 ft. lb.)

→ Tightening torque: 10 Nm (7.5 ft. lb.)
