Installing Knock Sensor, Cylinder Bank 1-3

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install knock sensor.
Information
- Observe the specified tightening torque for the knock sensor screw.
- Align the housing and cable plug for the knock sensor in such a way that they are not touching.
- Otherwise, there is no guarantee that the knock sensor will work correctly.
Information
- Observe the specified tightening torque for the knock sensor screw.
- Align the housing and cable plug for the knock sensor in such a way that they are not touching.
- Otherwise, there is no guarantee that the knock sensor will work correctly.
1. 1.1. Fit knock sensor -1- with screw -2- and align it. Then tighten screw.
  → Tightening torque: 20 Nm (15 ft. lb.) +/-2 Nm (+/-1.5 ft. lb.)

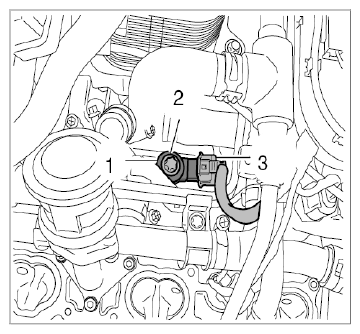

  Fig 1: Identifying Knock Sensor (Cylinder Bank 1-3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Push on cable plug -3- .
Install additional coolant pump.
→ 194519 REMOVING AND INSTALLING ADDITIONAL COOLANT PUMP - "Installing" section

→ Tightening torque: 10 Nm (7.5 ft. lb.)
Install shut-off valve.
→ 266919 REMOVING AND INSTALLING SHUT-OFF VALVE - "Installing" section

→ Tightening torque: 10 Nm (7.5 ft. lb.)
Install left intake-air distributor.
→ 244619 00 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - "Installing" section

→ Tightening torque: 10 Nm (7.5 ft. lb.)

→ Tightening torque: 10 Nm (7.5 ft. lb.)

→ Tightening torque: 30 Nm (22 ft. lb.)

→ Tightening torque: 10 Nm (7.5 ft. lb.)
Install oil-filter console.
→ 173319 REMOVING AND INSTALLING OIL-FILTER CONSOLE - "Installing" section

→ Tightening torque: 0 Nm (0 ft. lb.)
Install secondary-air pump.
→ 26651900 REMOVING AND INSTALLING SECONDARY-AIR PUMP - "Installing" section

→ Tightening torque: 10 Nm (7.5 ft. lb.)
Raise the engine.
Raise the engine to assembly position using a retainer plate 9592.

Screw in and tighten collar nuts.

→ Tightening torque: 85 Nm (63 ft. lb.)
Install fuel pump.
→ 206019 REMOVING AND INSTALLING FINE FUEL STRAINER - "Installing" section
