Removing Shut-Off Valve, Side 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear apron.
→ 635519 REMOVING AND INSTALLING REAR APRON .
Remove charge air cooler on right.
→ 214319 REMOVING AND INSTALLING CHARGE AIR COOLER .
Detach air conditioning compressor.
→ 873419 REMOVING AND INSTALLING AIR CONDITIONING COMPRESSOR .

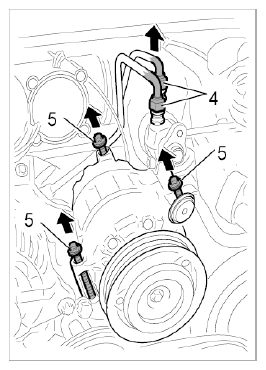

Fig 1: Removing Air Conditioning Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil filler neck.
→ 171519 REMOVING AND INSTALLING OIL FILLER NECK .

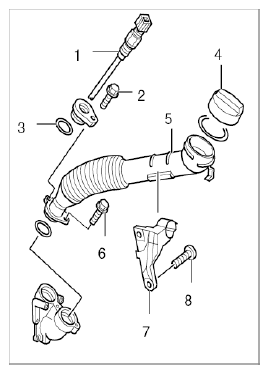

Fig 2: Overview Of Oil Filler Neck
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove intake-air distributor, side 4-6.
→ 244620 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR .

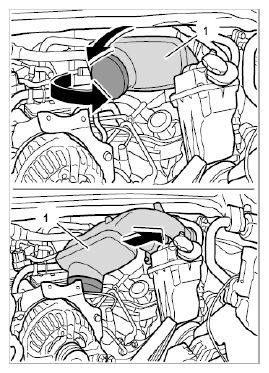

Fig 3: Turning Intake-Air Distributor (4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove shut-off valve, side 4-6.
1. 6.1. Release hose -2- and pull it off. Unscrew screws -3- and remove shut-off valve -1- .

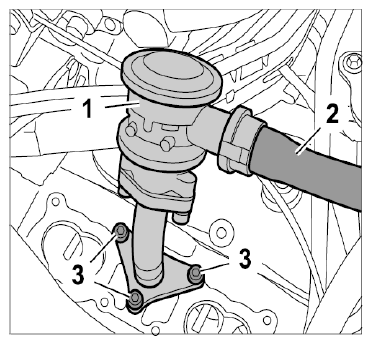

  Fig 4: Identifying Shut-Off Valve (4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
