Installing Shut-Off Valve, Side 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install shut-off valve 4-6. Use a new O-ring.
1. 1.1. Fit shut-off valve -1- with new O-ring and screw in and tighten M6 screws -3- . Connect hose -2- .
  → Tightening torque: 10 Nm (7.5 ft. lb.)

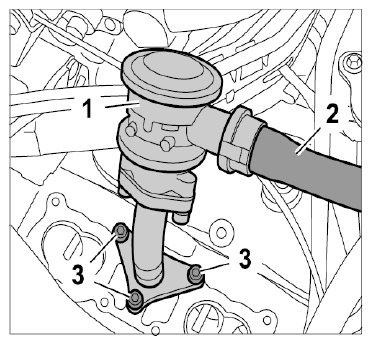

  Fig 1: Identifying Shut-Off Valve (4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install intake-air distributor, side 4-6.
→ 244620 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR .

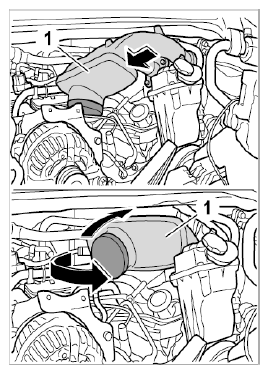

Fig 2: Turning Intake-Air Distributor (Side 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install oil filler neck.
→ 171519 REMOVING AND INSTALLING OIL FILLER NECK .

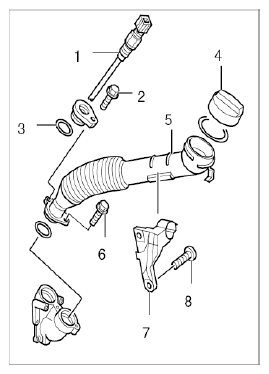

Fig 3: Overview Of Oil Filler Neck
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit air conditioning compressor.
→ 873419 REMOVING AND INSTALLING AIR CONDITIONING COMPRESSOR .

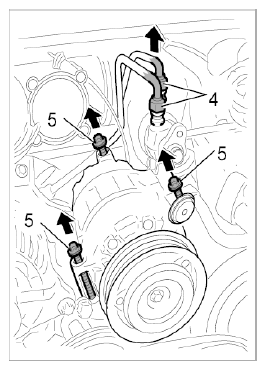

Fig 4: Installing Air Conditioning Compressor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install right charge air cooler.
→ 214319 REMOVING AND INSTALLING CHARGE AIR COOLER .
Install rear apron.
→ 635519 REMOVING AND INSTALLING REAR APRON .
