Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING
Remove tailpipe covers.
→ 263519 REMOVING AND INSTALLING TAILPIPE COVER - section on "Removing"
WARNING:
Objects or loads falling down
- Risk of squashing or crushing
→ Secure components to prevent them from falling down.

Information
- It may only be supported over a large area at the oil pan.
- Localized loading is not permitted.
Information
- When lowering, the engine must not rest on the rear axle cross member.
Lower the engine.
1. 3.1. Support the engine at the oil pan using the Hydraulic Jack HH2 WE 1033 and transmission jack plate of Transmission Jack VAG 1383 A WE 1082 .
2. 3.2. Alternative to transmission jack plate:
  Screw on the Mounting Peg 9163/2 in the middle using a wooden board (40 x 30 cm) and use it as a support.

  → Mounting peg

  Fig 1: Identifying Mounting Peg
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Loosen two special M12 nuts (internal Torx, screw insert T55) -1- on the engine mounting (hydraulic mount) at the left and right.

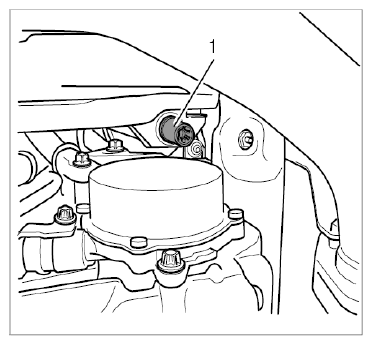

  Fig 2: Identifying Engine Mounting (Hydraulic Mount) Special Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 3.4. Slowly lower the engine with the hydraulic jack.
Remove recirculating air valve for cylinder bank 1-3.
→ 214019 REMOVING AND INSTALLING RECIRCULATING AIR VALVE - TURBO - section on "Removing"
