Removing Intake-Air Distributor, Side 4-6

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear apron.
→ 635519 REMOVING AND INSTALLING REAR APRON - section on "Removing" .
Remove charge air cooler on right.
→ 214319 REMOVING AND INSTALLING CHARGE AIR COOLER - section on "Removing" .
Remove oil filler neck with holder.

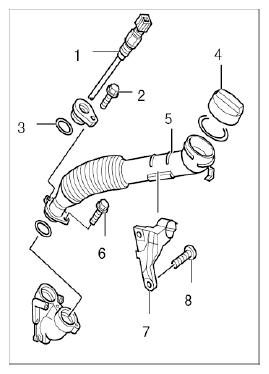

Fig 1: Removing/Installing Oil Filler Neck
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Remove oil filler neck -5- .
  → 171519 REMOVING AND INSTALLING OIL FILLER NECK - section on "Removing" .
2. 3.2. Remove holder -7- for oil filler neck.
Detach air conditioning compressor.
1. 4.1. Disconnect fuel line.

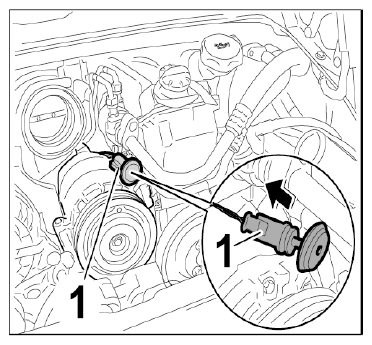

  Fig 2: Identifying Fuel Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 4.2. Pull engine compartment temperature sensor -1- out of the rubber holder.

  Fig 3: Pulling Engine Compartment Temperature Sensor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 4.3. Unscrew the fuel lines from the fuel cooler.
  Counter at the fuel cooler (a/f 14) when unscrewing the union nuts -4- .

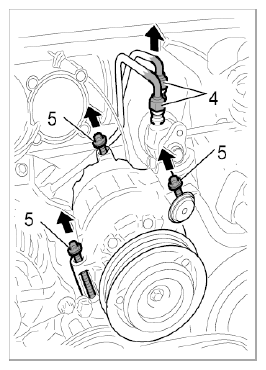

  Fig 4: Removing Fuel Cooler Fastening Nuts
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information

  Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

  Information

  Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

  Information

  Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

  Information

  Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.
4. 4.4. Remove compressor.
  Remove three M8 screws -5- . Carefully remove compressor, place to one side together with refrigerant lines (use protective surface). If necessary, secure with a tie-wrap to prevent them from slipping.
Remove the engine wire harness to create better access to the fuel collection pipe.
1. 5.1. Cut tie-wrap -arrow- .

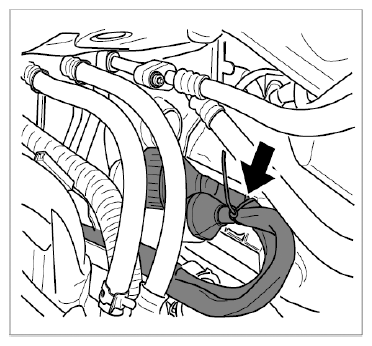

  Fig 5: Locating Engine Wire Harness
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 5.2. Open round connectors on engine wire harness.
  To do this, turn bayonet lock anticlockwise and pull off.

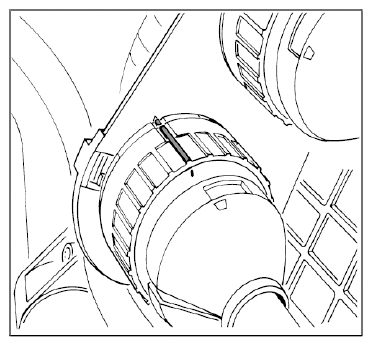

  Fig 6: Identifying Engine Wire Harness Round Connectors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

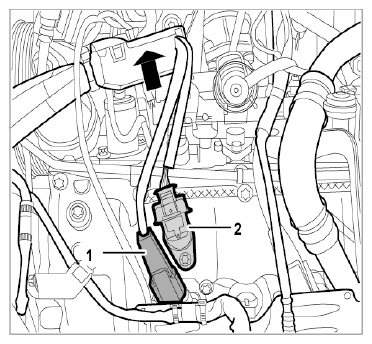

3. 5.3. Unplug cable plug for cylinder 4 ignition coil -1- .
  Pull cable plug -2- off the camshaft sensor.

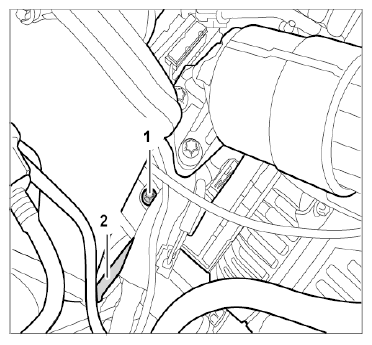

  Fig 7: Pulling Cable Rail And Cable Plug (Side 4-6)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 5.4. Pull cable rail upwards from fuel collection pipe -arrow- .
Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.
Detach oil line from the oil tank.

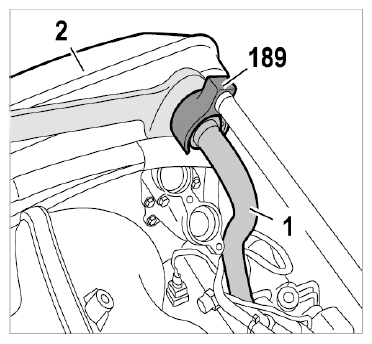

1. 6.1. Loosen oil line -1- from the oil tank -2- using crow foot wrench, a/f 32 Nr.189. Counter with an open-ended wrench (a/f 32) while doing this. Unscrew union nut.

  Fig 8: Removing Oil Line From Oil Tank
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Press line to one side to remove the fuel collection pipe.
Remove fuel collection pipe with fuel injectors 4-6.

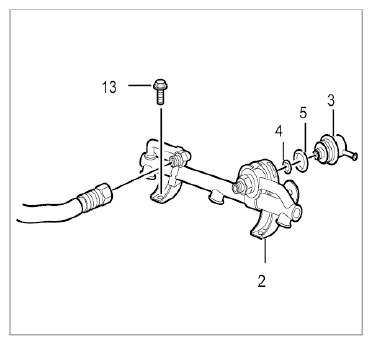

Fig 9: Removing Fuel Collection Pipe And Fuel Injectors (Side 4-6)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 7.1. Detach fuel line (a/f 17 and 19).
2. 7.2. Remove two M6 screws -13- .
3. 7.3. Detach fuel collection pipe -2- with fuel injectors 4-6 from the intake-air distributor.
4. 7.4. Disconnect cable plug for fuel injectors 4-6.
5. 7.5. Guide out fuel collection pipe -2- in the direction of travel until it is exposed and can be removed.
Remove right intake-air distributor.

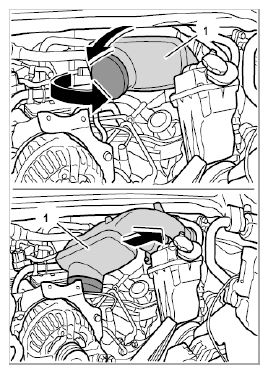

Lift right intake-air distributor -1- and twist slightly until it is free, then remove it over the hydraulic pump.

Use a 6-mm screwdriver insert with ball joint for screws that are difficult to reach.

Fig 10: Removing Right Intake-Air Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
