Installing Right Intake-Air Distributor

1. 1.1. Clean sealing surfaces on the intake-air distributor and crankcase.

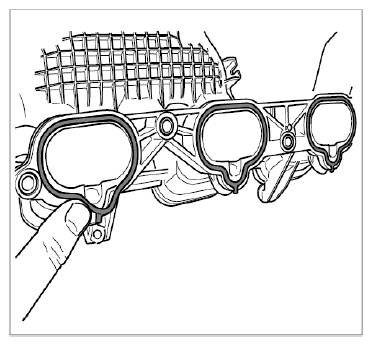

   Fig 1: Installing Intake-Air Distributor Seals

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 1.2. Replace the seals in the intake-air distributor and insert into the grooves
3. 1.3. Introduce right intake-air distributor, twist slightly and insert, fit and tighten screws.

   Use 6 mm screwdriver insert with ball joint for screws that are difficult to reach.

   → Tightening torque: 10 Nm (7.5 ft. lb.)

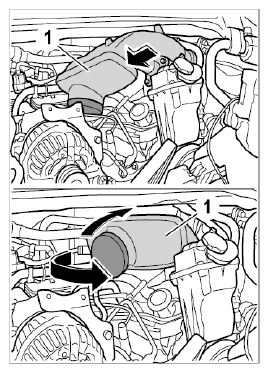

   Fig 2: Installing Right Intake-Air Distributor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

Information

Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

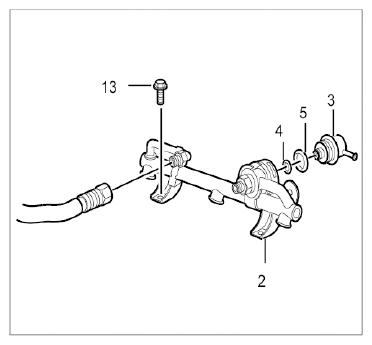

Fig 3: Installing Fuel Injectors Cylinders 4-6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Replace O-rings of the fuel injectors.
2. 2.2. Clean sealing faces with a clean, lint-free cloth. Apply a thin coat of silicone spray to the O-rings.
3. 2.3. Insert fuel injectors onto fuel collection pipe -2-  and secure them using spring clamp.
4. 2.4. Press fuel collection pipe -2-  with fuel injectors 4-6 into the mountings in the intake-air distributor.
5. 2.5. Fit and tighten M6 screws -13-  .

   → Tightening torque: 10 Nm (7.5 ft. lb.)

1. 3.1. Screw fuel line (a/f 17 and 19) onto fuel collection pipe and tighten it.

   → Tightening torque: 30 Nm (22 ft. lb.)

2. 3.2. Screw fuel line onto pressure regulator and tighten it.

   → Tightening torque: 30 Nm (22 ft. lb.)

1. 4.1. Connect cable plug to the fuel injectors 4-6.
2. 4.2. Connect cable plug for cylinder 4 ignition coil -1-  .
3. 4.3. Connect cable plug -2-  for hall sender.

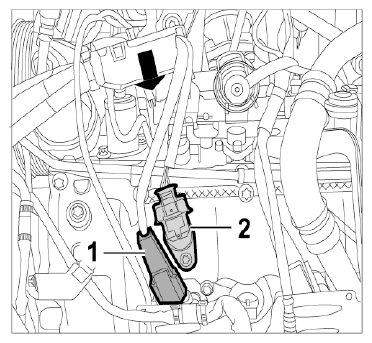

   Fig 4: Installing Cable Rail And Cable Plug (Side 4-6)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 4.4. Clip on cable rail at the fuel collection pipe -arrow-  .
5. 4.5. Connect engine wiring harness.

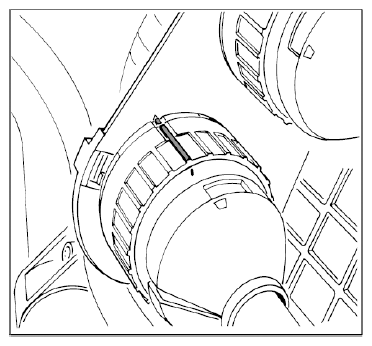

   Fig 5: Identifying Engine Wire Harness Round Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fit round connector onto connector bracket and turn clockwise until it reaches the locking point.

   Fig 6: Locating Engine Wire Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. 4.6. Secure engine wire harness with tie-wraps.

1. 5.1. Fit union nut and secure oil line -1-  to the oil tank -2-  using crow foot wrench, a/f 32 Nr.189.  Counter with an open-ended wrench (a/f 32) while doing this.

   → Tightening torque: 60 Nm (44 ft. lb.)

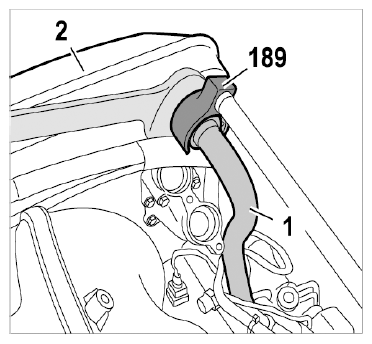

   Fig 7: Installing Oil Line To Oil Tank

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 6.1. Insert compressor carefully. Fit and tighten M8 screws -5-  .

   → WM 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR- section on "Securing"  .

   → Tightening torque: 23 Nm (17 ft. lb.)

2. 6.2. Screw on and tighten the fuel lines at the fuel cooler.

   Counter at the fuel cooler (a/f 14) when tightening the union nuts -4-  .

   → Tightening torque: 25 Nm (19 ft. lb.)

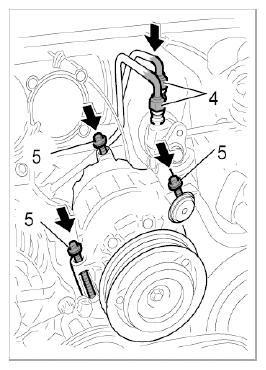

   Fig 8: Installing Air Conditioning Compressor Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

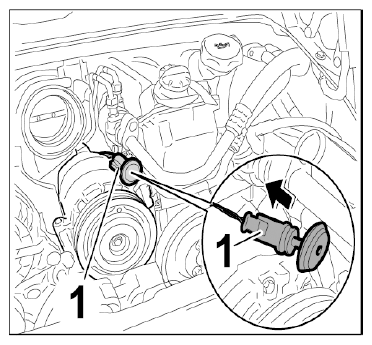

3. 6.3. Insert engine compartment temperature sensor into the rubber holder.
   Fig 9: Installing Engine Compartment Temperature Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 6.4. Secure fuel line.

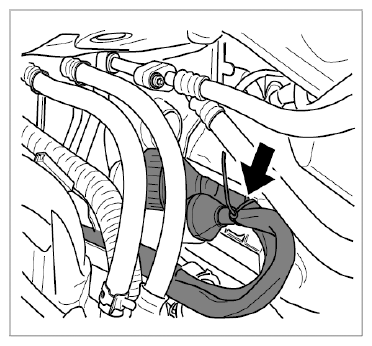

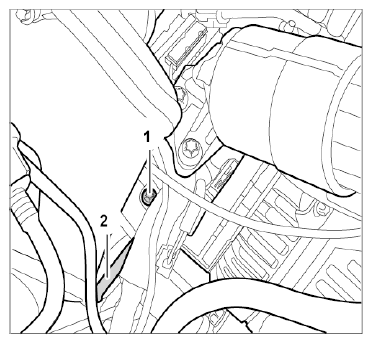

   Fig 10: Identifying Fuel Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

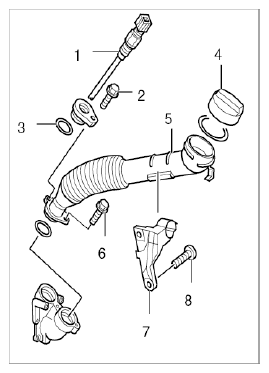

Fig 11: Removing/Installing Oil Filler Neck

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 7.1. Install holder for oil filler neck.

   → Tightening torque: 10 Nm (7.5 ft. lb.)

2. 7.2. Install oil filler neck.

   → 171519 REMOVING AND INSTALLING OIL FILLER NECK  - section on "Installing"  .

→ 214319 REMOVING AND INSTALLING CHARGE AIR COOLER  - section on "Installing"  .

→ 635519 REMOVING AND INSTALLING REAR APRON  - section on "Installing"  .
