Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove pressure pipe.
→ 214119 REMOVING AND INSTALLING PRESSURE PIPE .

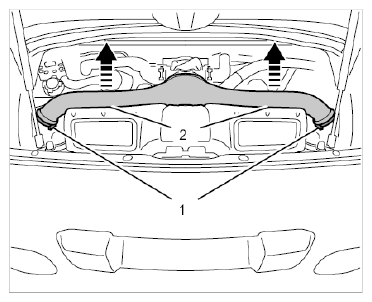

1. 1.1. Loosen screw-type clamps -1- and remove pressure pipe in an upward direction -arrows- .

  Fig 1: Removing Pressure Pipe In Engine Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off original rubber sleeve on the throttle body by opening the screw-type clamp.
