Install oil separator.
→ 105519 REMOVING AND INSTALLING OIL SEPARATOR - section on "Installing".
Fit hydraulic return line.
1. 2.1. Insert hydraulic return line -3- into the holder on the oil/water heat exchanger.

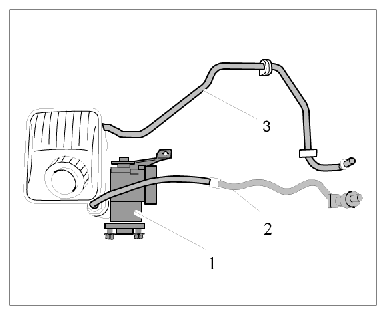

  Fig 1: Identifying Hydraulic Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Connect hydraulic return line to the reservoir for the hydraulic pump -arrow- .

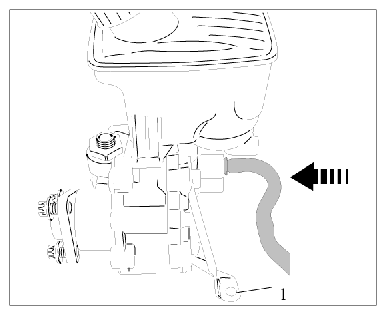

  Fig 2: Connecting Hydraulic Pump Return Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Raise the engine.
1. 3.1. Support the engine at the oil pan using Hydraulic Garage Jack H 2 SL WE 1032 and transmission jack plate of Transmission Jack VAG. 1383 A WE 1082 .
2. 3.2. Slowly raise the engine using the jack.
3. 3.3. Tighten two special M12 nuts (internal Torx, screw insert T55) -1- on the engine mounting (hydraulic mount) at the left and right.
  → Tightening torque: 85 Nm (63 ft. lb.)

  Fig 3: Identifying Engine Carrier And Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
CAUTION:
Incorrect oil level
- Damage to engine and catalytic converter.
→ Always observe specification for oil fill quantities.
Check the engine-oil level and top up if necessary.
→ 170101 CHECKING ENGINE-OIL LEVEL
Install air conditioning compressor.
→ 873419 REMOVING AND INSTALLING AIR CONDITIONING COMPRESSOR - section on "Installing"
Check the engine coolant level and top up if necessary.
Install intake-air distributor pipe on cylinder bank 4-6.
→ 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - section on "Installing"
Install resonance tube.
→ 247419 REMOVING AND INSTALLING RESONANCE TUBE - section on "Installing"
Install air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - section on "Installing"
Let the engine run until warm and check for leaks.
Install underbody panels at the left and rear.
→ 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY - section on "Installing"

→ 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY - section on "Installing"
