Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot fluid

Danger of scalding

→ Let the fluid cool down.

→ Wear personal protective gear.

WARNING: Vehicle can fall down

Risk of squashing or crushing
Risk of damage to the vehicle

→ Do not place any solid objects under the raised vehicle.

→ Ensure that the lifting platform is prevented from lowering.

→ Remove solid objects before lowering the vehicle.

→ Raise the vehicle only at the jacking points provided.

→ The outer jacking points should be used primarily.

Raise the vehicle.
→ 4X00IN01 LIFTING THE VEHICLE
Allow engine to cool down.
Place protective covers on the vehicle to avoid damaging the body and passenger compartment.
Remove air cleaner housing.
→ 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING - section on "Removing"
Lower the engine.
1. 5.1. Support the engine at the oil pan using Hydraulic Garage Jack H 2 SL WE 1032 and transmission jack plate of transmission Jack VAG. 1383 A WE 1082 .
2. 5.2. Loosen and unscrew two special M12 nuts (internal Torx, screw insert T55) -1- on the engine mounting (hydraulic mount) at the left and right.

  Fig 1: Identifying Engine Carrier And Mounting
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 5.3. Lower the engine with the jack by max. 40 mm.
Remove resonance tube.
→ 247419 REMOVING AND INSTALLING RESONANCE TUBE - section on "Removing"
Remove intake-air distributor pipe on cylinder bank 4-6.
→ 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR - section on "Removing"
Remove air conditioning compressor and set it aside.
→ 873419 REMOVING AND INSTALLING AIR CONDITIONING COMPRESSOR - section on "Removing"
Remove underbody panels at the rear and left.
→ 519319 REMOVING AND INSTALLING COVER FOR CENTRE UNDERBODY - section on "Removing"

→ 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY - section on "Removing"
Drain engine oil.
→ 170155 CHANGING ENGINE OIL AND OIL FILTER
Remove hydraulic return line.
1. 11.1. Disconnect hydraulic return line at the reservoir -center arrow- for the hydraulic pump (release and pull it out at the same time).
  Disassembly tool, universal NR.21

  If you do not have a special tool to hand, press the circlip -center arrow- forward using two plastic spatulas or an open-ended wrench (a/f 12) and pull the return line -right arrow- out at the same time.

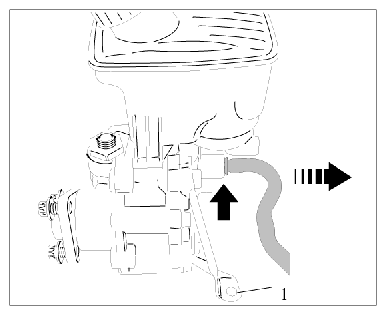

  Fig 2: Disconnecting Return Line And Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 11.2. Pull hydraulic return line -3- out of the holder on the oil/water heat exchanger and set it aside.

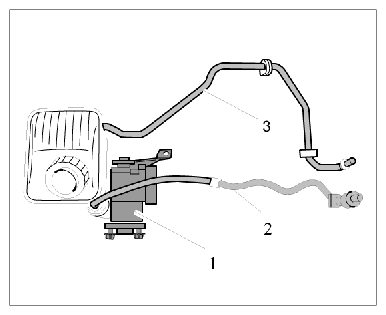

  Fig 3: Identifying Hydraulic Lines
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove oil separator and set it aside.
→ 105519 REMOVING AND INSTALLING OIL SEPARATOR - section on "Removing".
