Filling via the high-pressure side

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

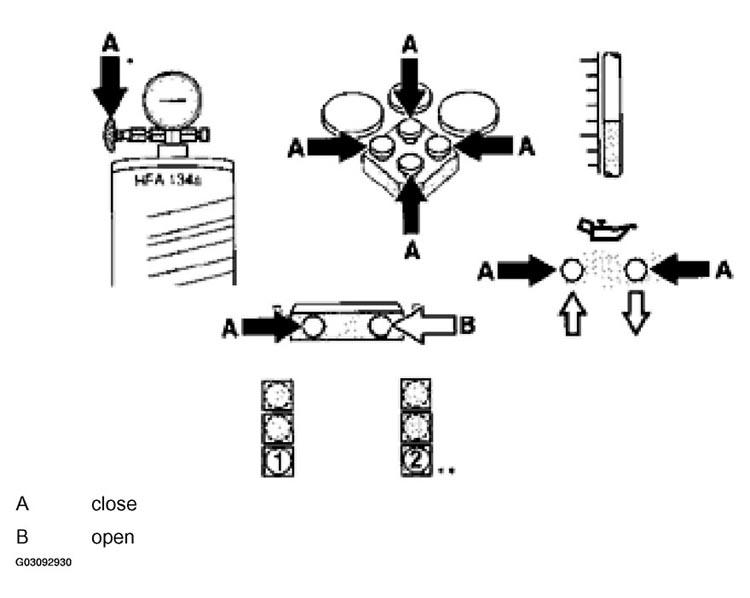

Fig 1: Filling Via The High-Pressure Side

Courtesy of PORSCHE OF NORTH AMERICA, INC.

A close

B open

1 - ON/OFF

2 - HEATING

* Pressure 8 ... 10 bar.

** If pressure is less than 8 bar.

After using the SECU, perform internal suction removal (see Removing refrigerant by suction and cleaning ); first close the hand valves on both suction lines.
