Removing refrigerant by suction and cleaning
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

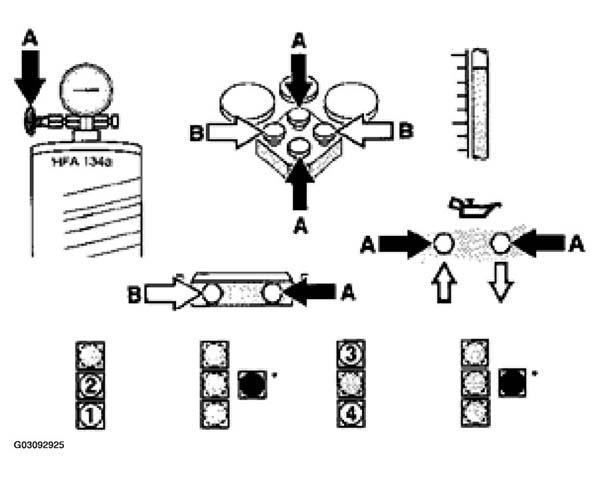

Close all valves before carrying out each work step.
A - close
B - open
SUCTION REMOVAL
| Suction removal, start | End |
|---|---|
| 1 - ON/OFF | 3 - SUCTION/END |
| 2 - SUCTION/CLEANING | 4 - ON/OFF |
* Pressure too high/filling cylinder full.
Drain off refrigerant from the filling cylinder into a refrigerant bottle (approx. 50 %).
