Installing Distributor Housing

Information

• Grease O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93)  .

1. Check molded seals and replace if damaged.
   1. 1.1. Coat seals with the specified lubricant.
2. Install distributor housing -1-  .
   1. 2.1. Position distributor housing.
   2. 2.2. Tighten all screws.
   3. 2.3. Fit coolant connection piece and tighten external Torx screws (M8 x 70) -2-  .

      Tightening torque 33 Nm (24 ftlb.)

   4. 2.4. Tighten external Torx screws M8 x 50 -3-  and M8 x 35 -4-  .

      Tightening torque 33 Nm (24 ftlb.)

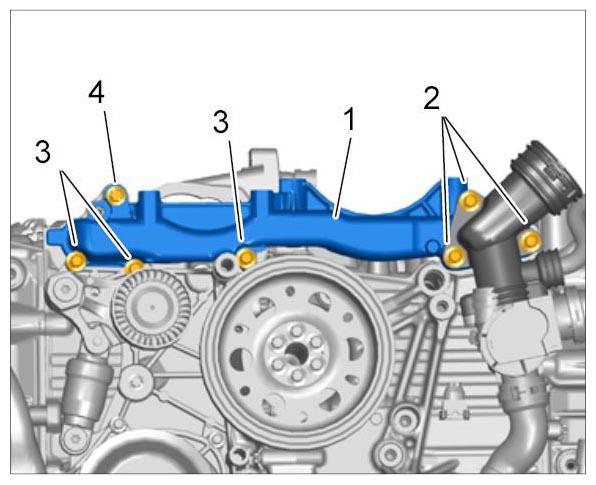

      Fig 1: Identifying Coolant Distributor Housing Screws

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Secure bracket -1-  for coolant pump.
   1. 3.1. Tighten external Torx screws -4 and 5-  .
   2. 3.2. Tighten M6 external Torx screw.

      Tightening torque 13 Nm (9.5 ftlb.)

   3. 3.3. Tighten M8 external Torx screw.

      Tightening torque 33 Nm (24 ftlb.)

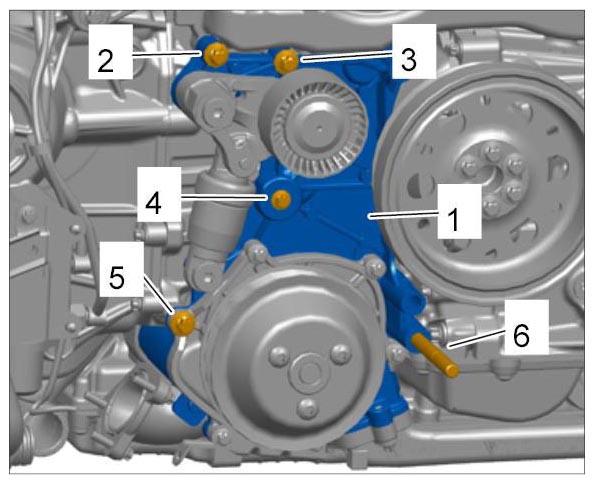

      Fig 2: Identifying Coolant Pump Bracket (Engine Carrier)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install vibration damper.

   → INSTALLING VIBRATION DAMPER .

5. Install tensioning roller.

   → INSTALLING TENSIONING ROLLER .
