Installing Heating Element For Front Backrest With Active Seat Ventilation

Information

The heating element for the front backrest is an integrated part of the front backrest cover and cannot be replaced separately.

The heating element for the front middle backrest is an independent component.

1. Install cover for front backrest. → Installing cover for front backrest  .
2. Connect heating element for front middle backrest -1-  to padding for front middle backrest -3-  .
   1. 2.1. Guide intake plenum -2-  through the opening in the padding for the front middle backrest -3-  (-arrow-  ).

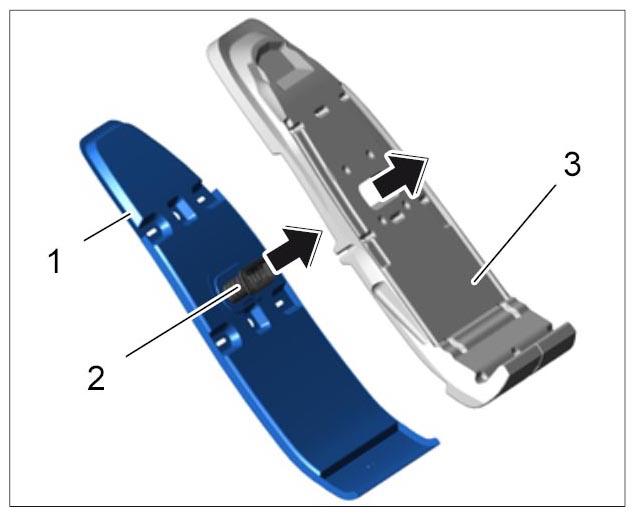

      Fig 1: Installing Front Middle Backrest Heating Element

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install padding for front middle backrest. → Installing padding for front middle backrest  .
