Installing Cover For Front Backrest

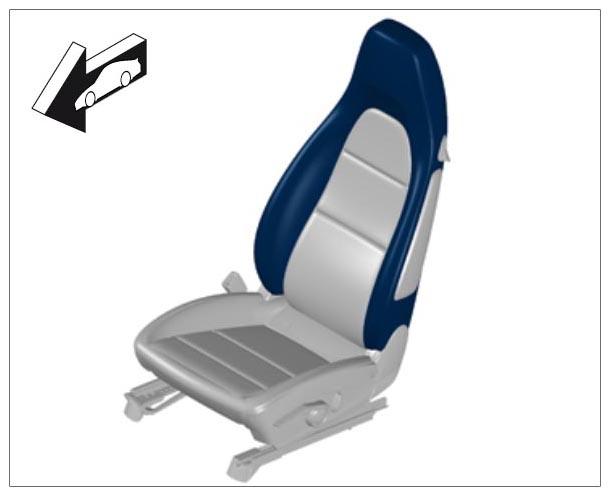

Fig 1: Identifying Front Backrest Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

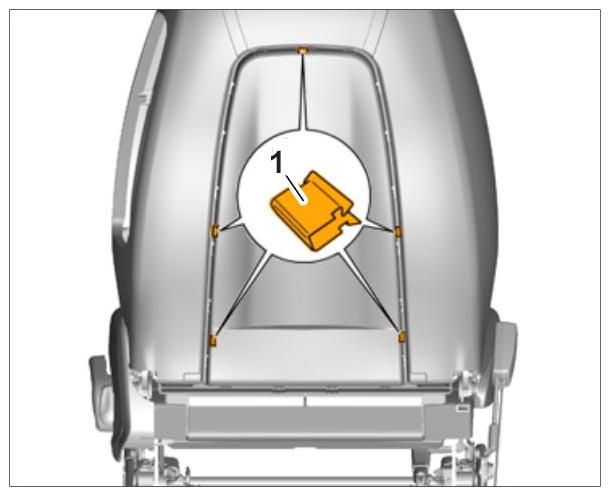

Check fastening clamps and fixing clips -1- and replace them if necessary.

Fig 2: Checking Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

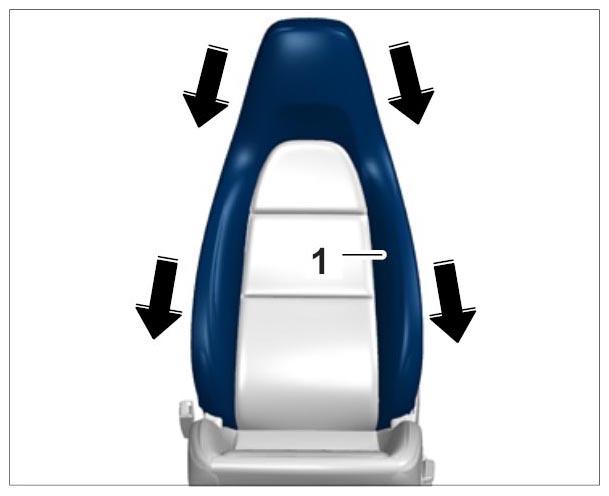

Pull on cover for backrest -1- and align with contour of padding.

Fig 3: Installing Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

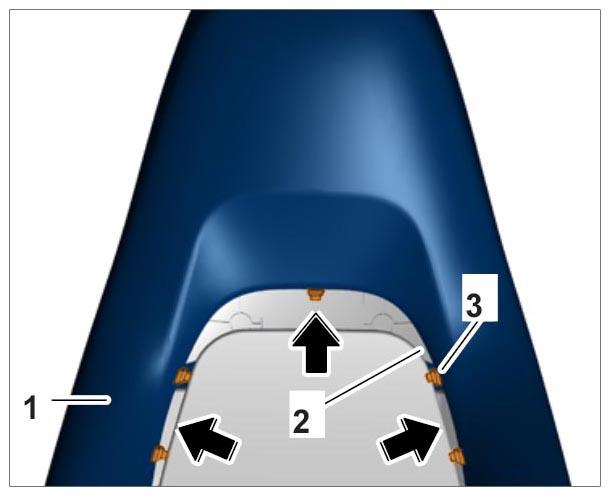

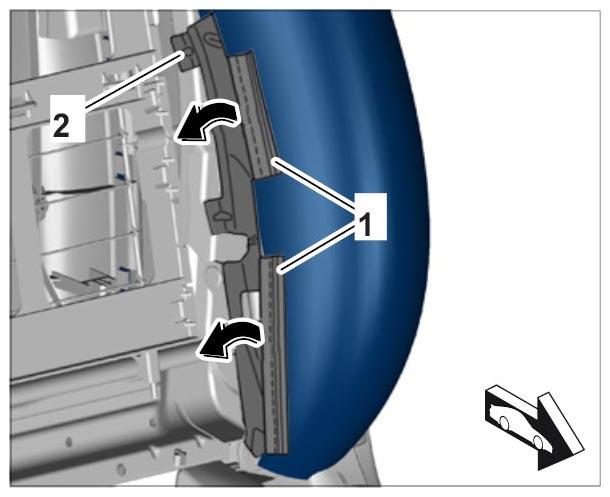

Press plastic strip -2- on cover for backrest -1- into the fixing clips -3- .

Fig 4: Locating Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press connection for backrest cover -1- at the rear into the cushion carrier -2- (-arrows- ) and tap gently into place (plastic hammer).

Fig 5: Tapping Rear Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

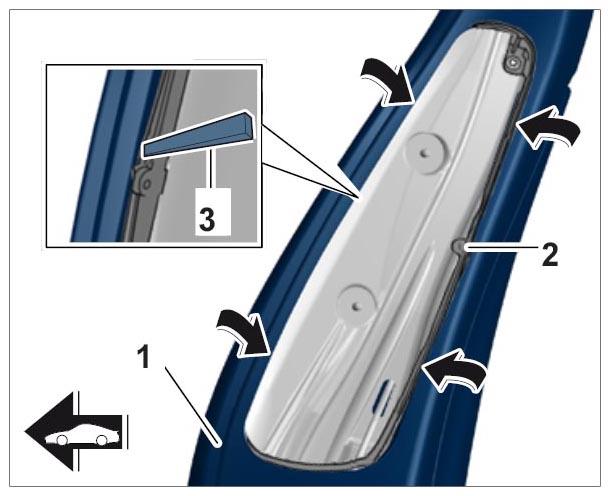

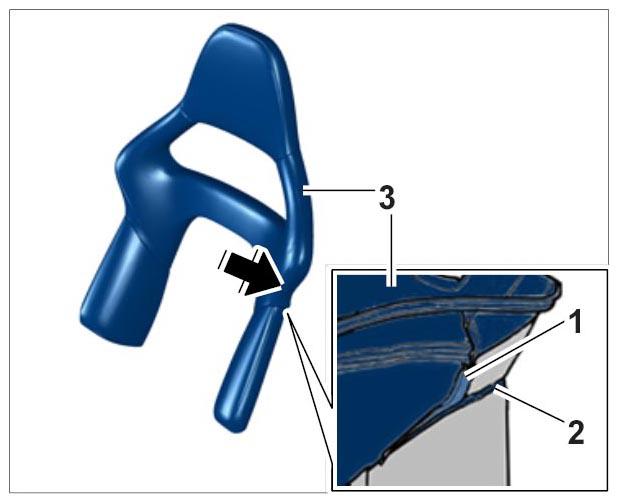

Press connection of backrest cover -1- into the side airbag frame -2- with a plastic wedge -3- .

Fig 6: Securing Side Airbag Frame Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

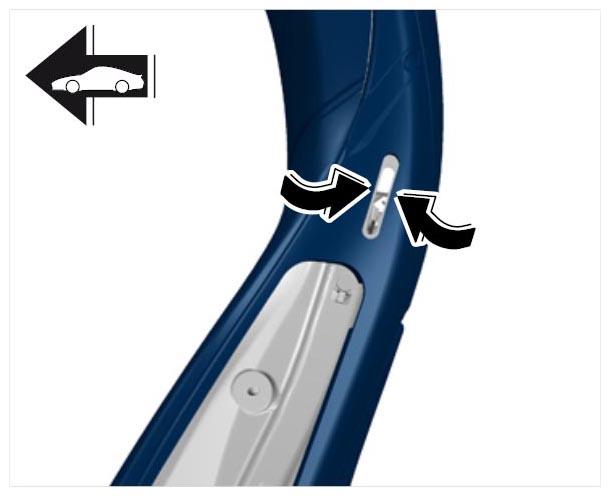

Engage connection at control button for backrest adjustment -arrows- .

Fig 7: Securing Backrest Frame Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install side airbag. → INSTALLING FRONT SIDE AIRBAG .
Engage cover piping -1- right and left into backrest frame -2- .

Fig 8: Engaging Cover Piping
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

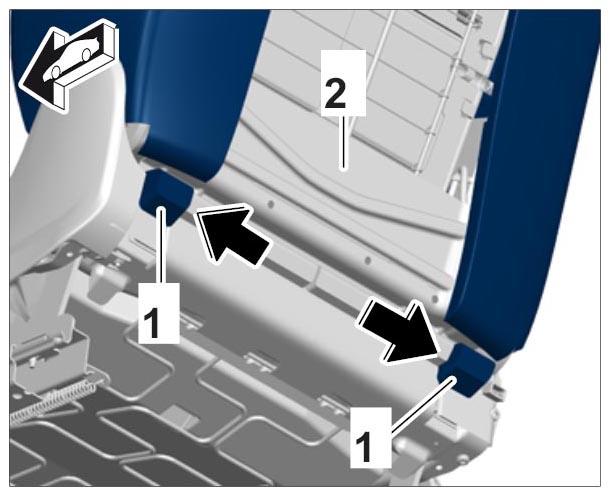

Slide cover for backrest -1- onto the cushion carrier -2- at the bottom left and right, starting at the middle and moving to the relevant side -arrows- .

Fig 9: Locating Backrest Cover (Bottom)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

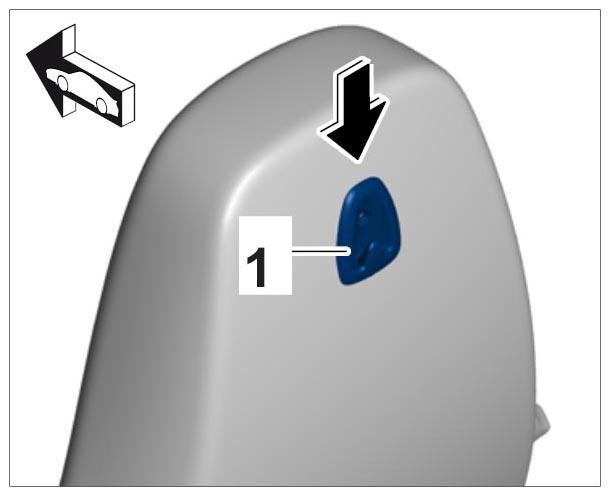

Position clothes hook -1- over of the cut-out and press down firmly until it engages securely.

Fig 10: Installing Clothes Hook
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

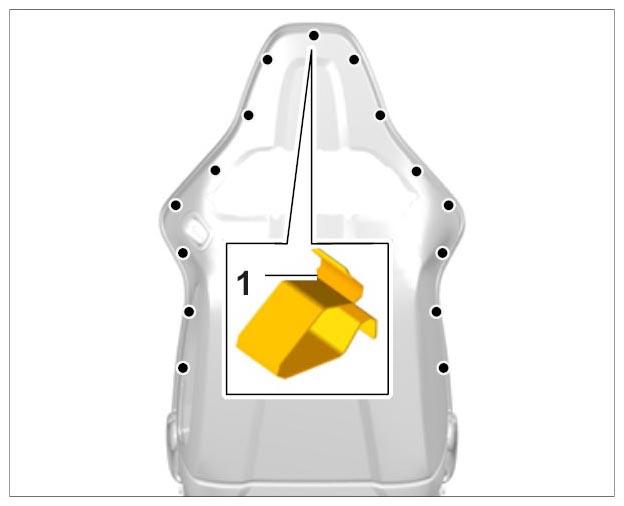

Check fastening clamps -1- on the outside of the backrest shell and replace them if necessary.

Fig 1: Checking Fastening Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

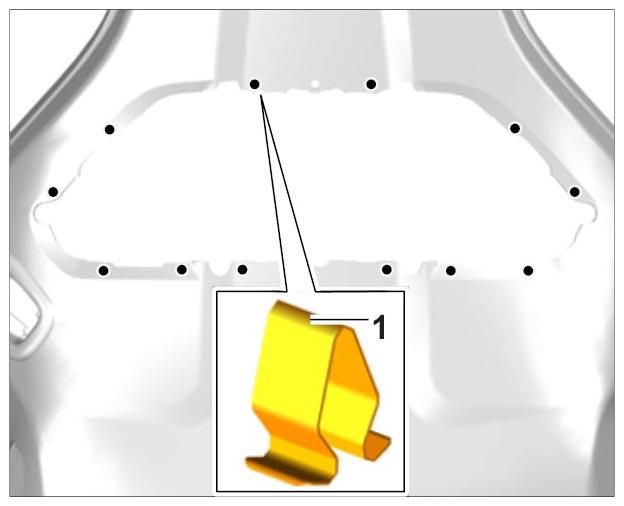

Check fastening clamps -1- close to the belt guide and replace them if necessary.

Fig 2: Checking Fastening Clamps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only when replacing the cover.

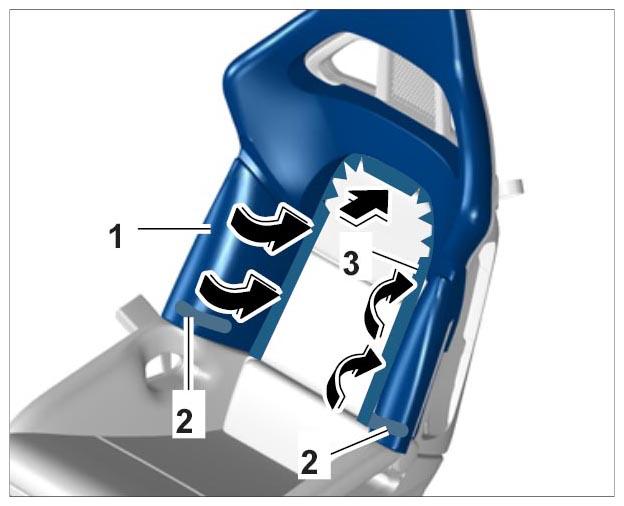

Position cover -3- on the front of the padding -1- .

Fig 3: Locating Cover And Padding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align Velcro strip -2- on the cover with the Velcro fastener on the padding -1- and secure it -arrow- .

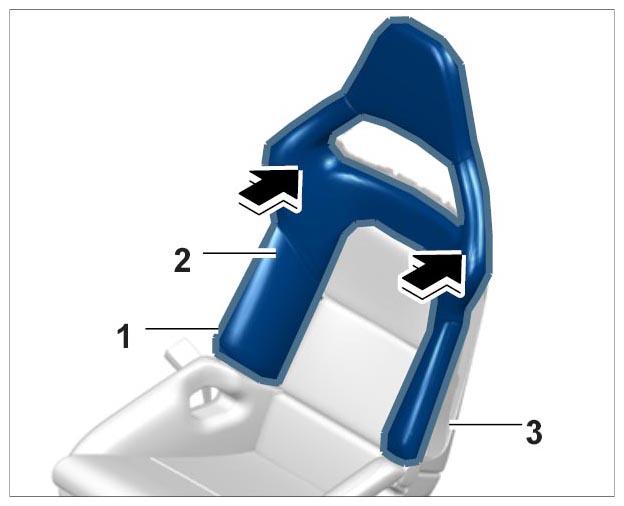

Position cover -1- and padding -2- on the backrest shell -3- and straighten it -arrows- .

Fig 4: Securing Cover (Belt Guide)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

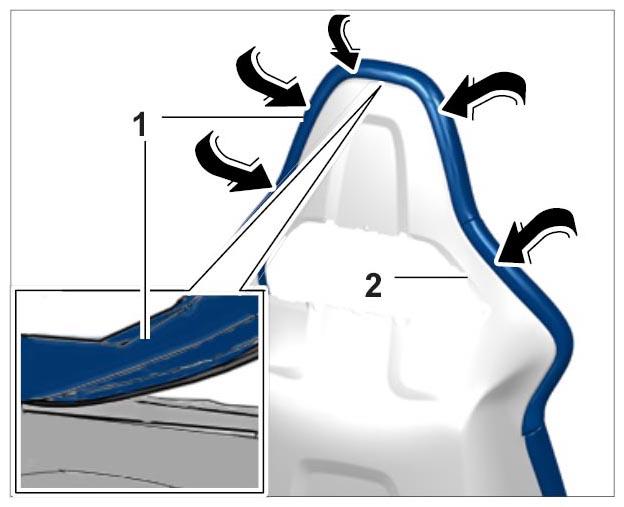

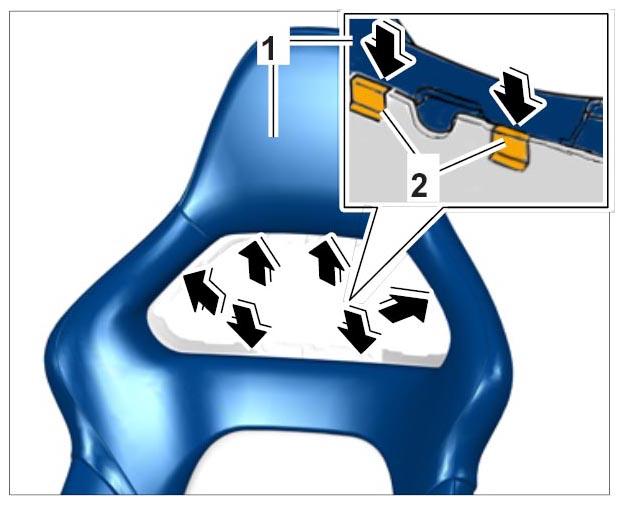

Press joint on cover -1- into the backrest shell -2- near the top of the headrest -arrows- .

Fig 5: Securing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press joint on cover -1- into the fastening clamps -2- near the belt strap guide -arrows- .

Fig 6: Securing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

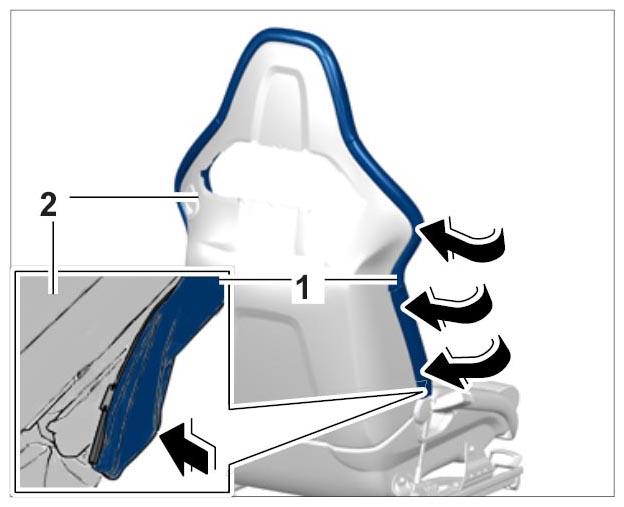

Press cover -1- into the backrest shell -2- at the sides -arrows- .

Fig 7: Securing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Align cover -1- with the side bolsters.

Fig 8: Pressing Velcro Fasteners
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure the Velcro fasteners join cleanly.
Press on Velcro fasteners -2- and -3- (-arrows- ).

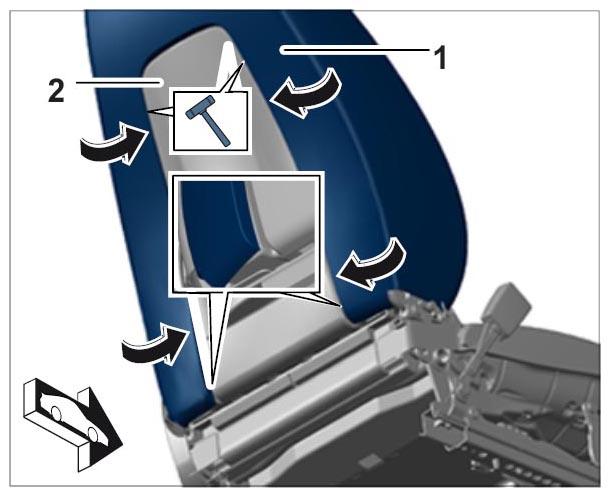

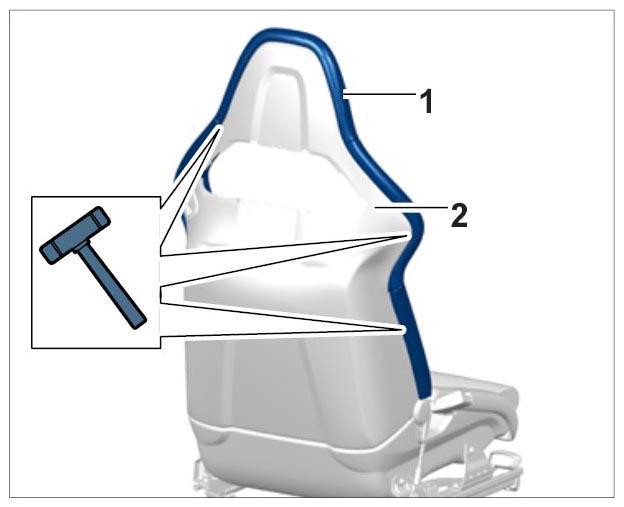

Press joint on cover -1- into the backrest shell -2- at the sides using a plastic wedge and secure by tapping gently (with a plastic hammer).

Fig 9: Securing Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

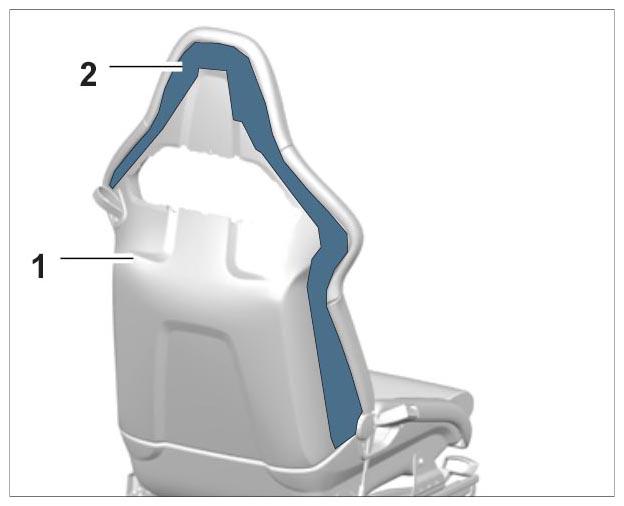

Remove adhesive tape -2- from the backrest shell -1- .

Fig 10: Identifying Mask Backrest Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
