Installing Padding For Front Middle Backrest

Position piping -2- for cover for middle backrest and padding -4- on the plastic frame -3- . Use the cushion clip pliers Nr.130 and the cushion clips -1- to join the cover strips and the plastic frame -3- .

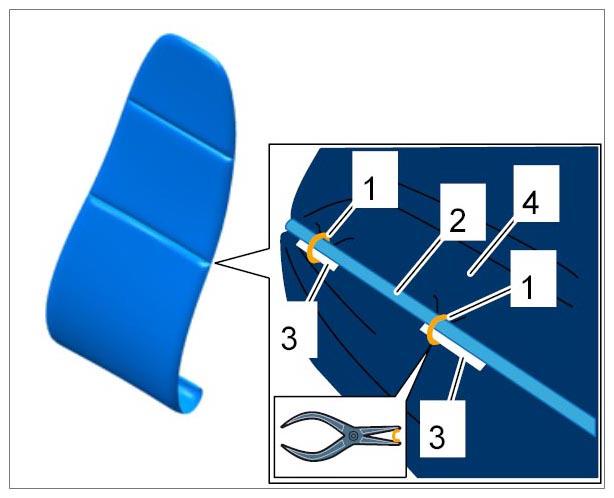

Fig 1: Installing Middle Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage cover for middle backrest -1- in the plastic frame -2- all the way round.

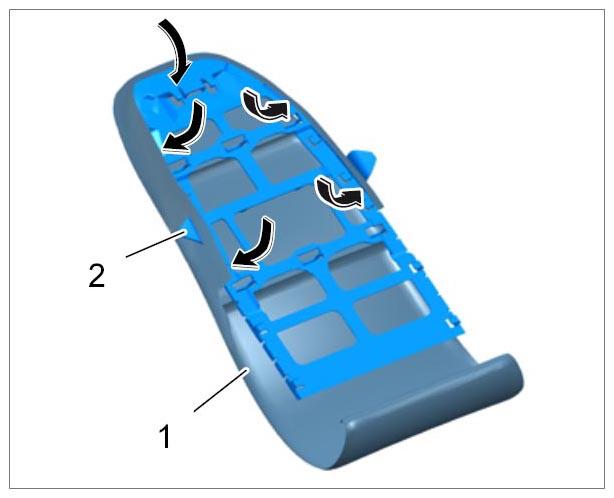

Fig 2: Engaging Middle Backrest Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
