Installing Heater Element For Front Seat With Active Seat Ventilation

Information

The heater element for the front seat side bolsters is an integrated part of the front seat and cannot be replaced separately.

The heater element for the front seat surface is an independent component.

1. Install heater element for seat surface.

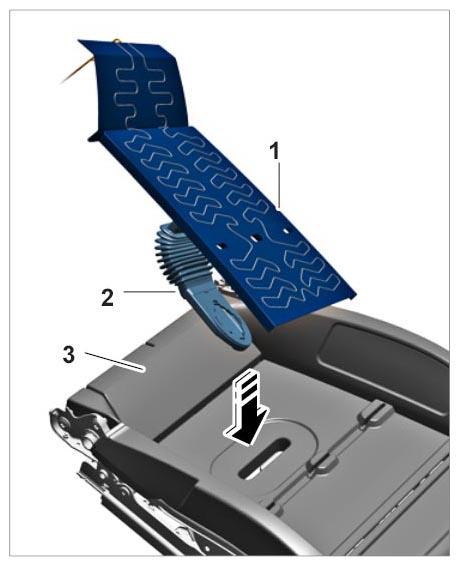

   1. 1.1. Guide intake plenum -2-  through the opening in the padding -3-  .
      Fig 1: Installing Heater Element

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 1.2. Position heater element -1-  together with the intake plenum -2-  on the padding -3-  .

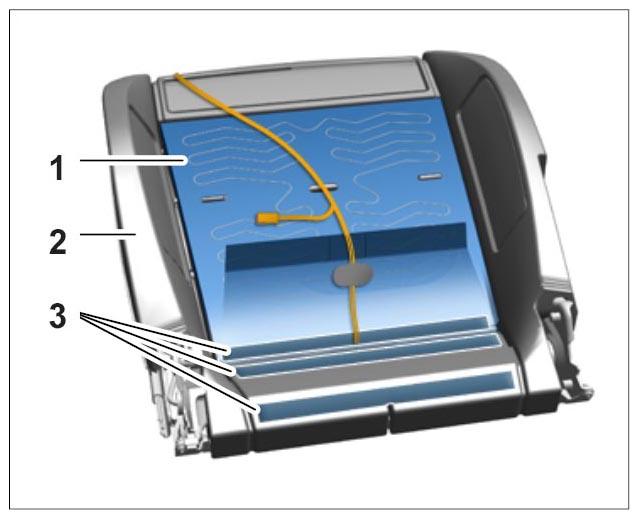

   3. 1.3. Pull off protective film on adhesive strips -3-  on the heater element -1-  and affix the heater element -1-  to the padding -2-  .
      Fig 2: Securing Heater Element

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install cover for front seat. → Installing cover for front seat  .
3. Install suction fan for seat surface. → Installing suction fan for seat surface  .
