Installing Suction Fan For Seat Surface

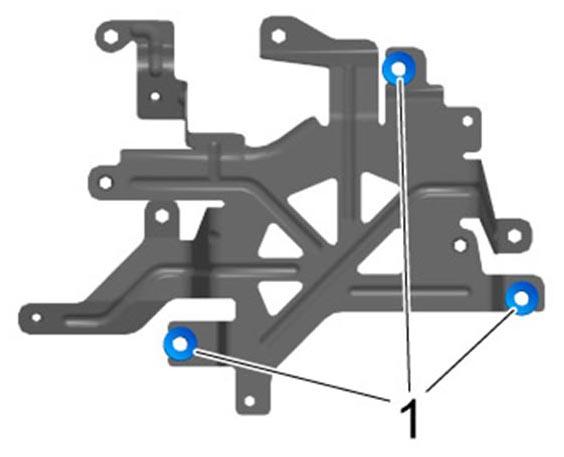

Check rubber mounting -1- on suction fan holder for damage and replace it if necessary.

Fig 1: Checking Rubber Mounting
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Ensure that the suction fan is installed at the correct position.

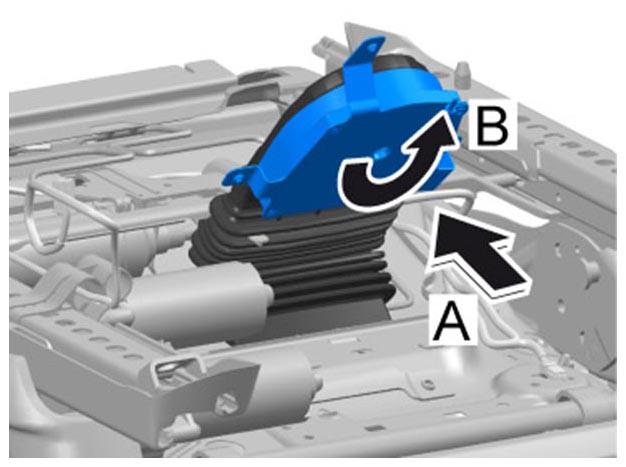

Insert suction fan for seat surface into the air duct -A- , press it in and turn anti-clockwise -B- until the suction fan is fully locked in the air duct.

Fig 2: Fitting Suction Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

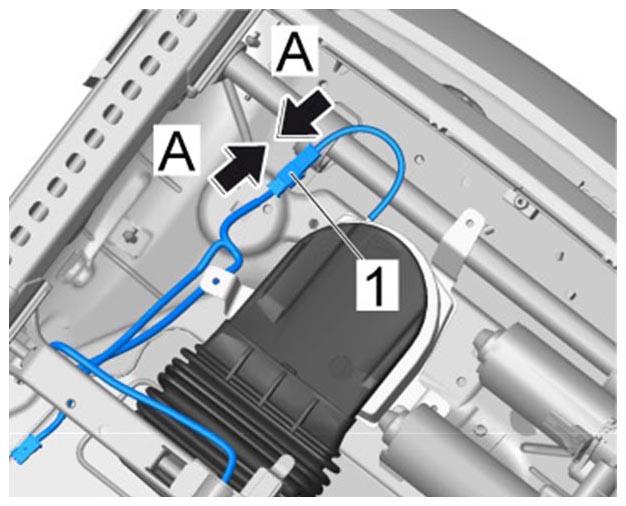

Plug in connector for suction fan -1- (-A- ).

Fig 3: Inserting Suction Fan Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

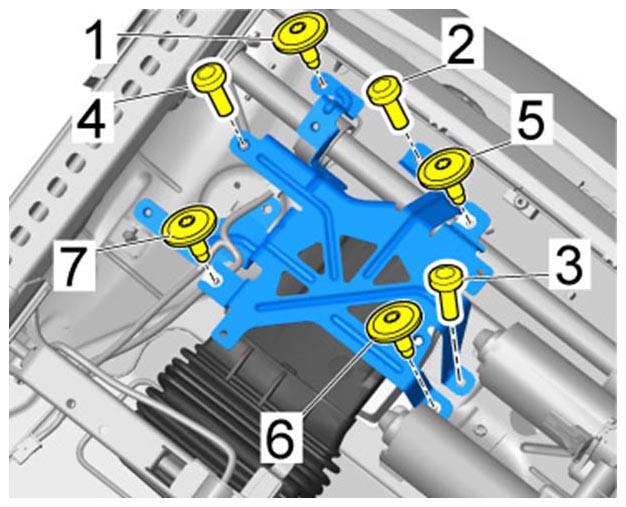

Fit fastening screws for suction fan.
1. 4.1. Fit fastening screws -5, 6, 7- for the suction fan on the holder.
2. 4.2. Fit fastening screws -2, 3, 4- for suction fan holder.
