Installing Cover For Front Seat

Information

Fasten cover to the padding, starting from the inside.

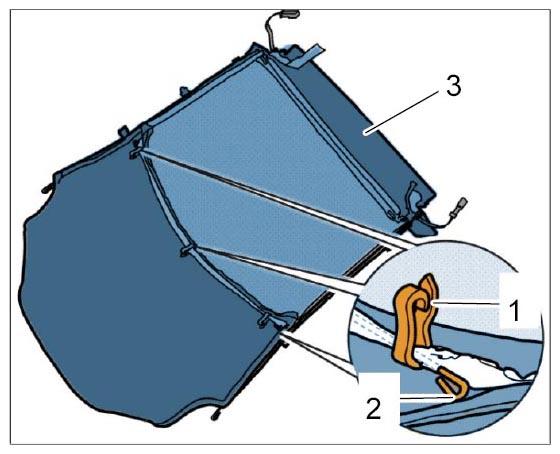

1. Engage cushion clips -1-  in the integrated metal strut at the front -2-  of the cover -3-  .
   Fig 1: Fitting Cushion Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Place cover -3-  on the padding -4-  and align it -arrows-  .
   Fig 2: Securing Back Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

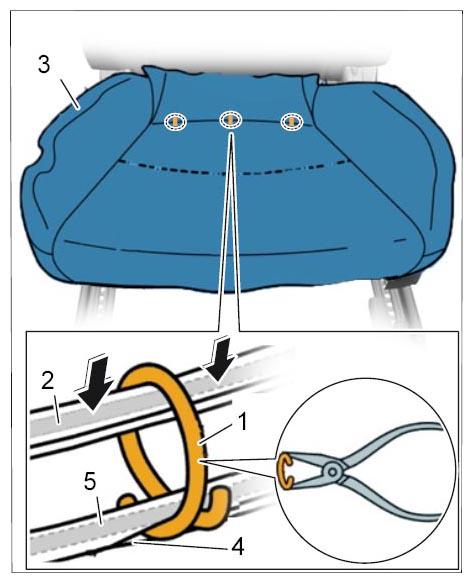

3. Using the cushion clip pliers Nr.130  and the cushion clips -1-  at the rear, join the integrated metal struts of the padding -5-  to the metal struts for the cover -2-  .
4. Using the cushion clips -2-  at the front, join the integrated metal struts of the padding -4-  to the metal struts of the cover -3-  .
   Fig 3: Securing Front Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

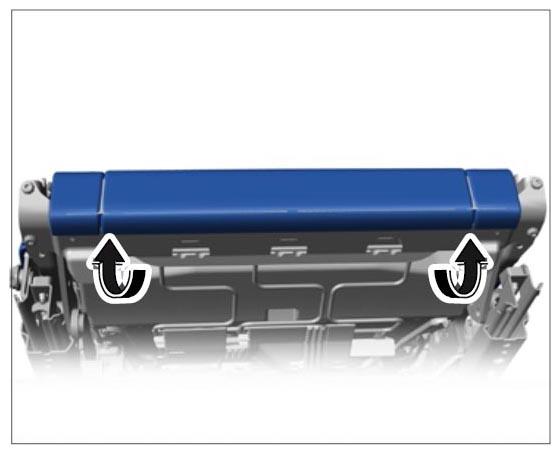

5. Fold out cover -1-  (-arrows-  ).

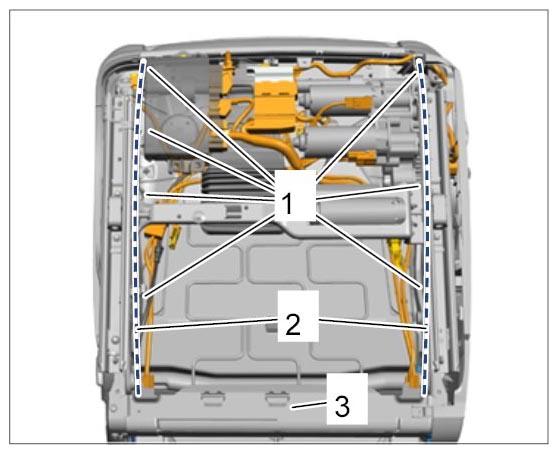

6. Check fixing clips -1-  and replace them if necessary.
7. Position longitudinal strut for cover at right and left -2-  at the cut-outs provided on the padding and clip them into the seat frame -3-  .
Fig 4: Clipping In Longitudinal Strut For Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Fit cover over the padding without creases.

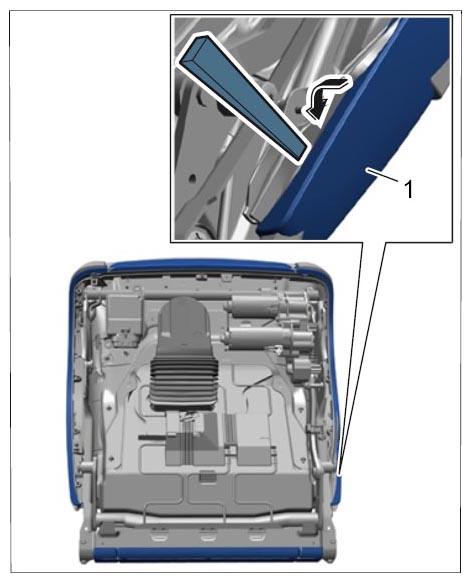

9. Clip cover piping -1-  into the seat frame all the way around using a plastic wedge -arrow-  .
   Fig 5: Clipping In Lower Cover Piping

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

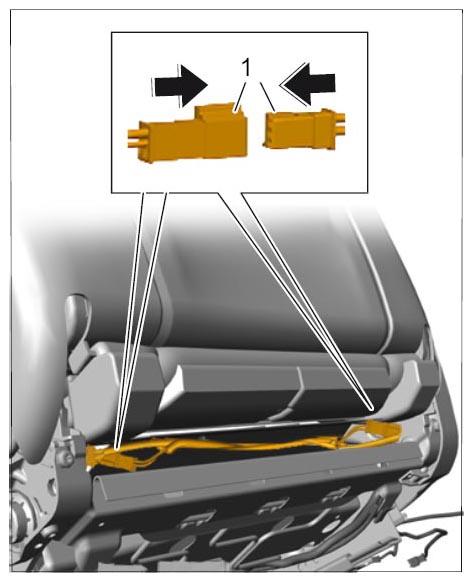

10. Connect plug connections for heated seats -1-  (-arrows-  ).
    Fig 6: Connecting Heated Seats Electric Plug Connection

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Fit cover piping at the rear on the seat frame using a plastic wedge -arrows-  .
    Fig 7: Clipping In Rear Cover Piping

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
