Preliminary Work For Removing And Installing Front Drive Shaft
WARNING: This page is about a different variant/trim than selected.
- Remove hub cap using > 9229 - puller hook and loosen drive shaft mounting at the side of the wheel before raising the vehicle. Also press the brake whist doing so (second mechanic required).
> 404119 Removing and installing front drive shaft - section on "REMOVING "

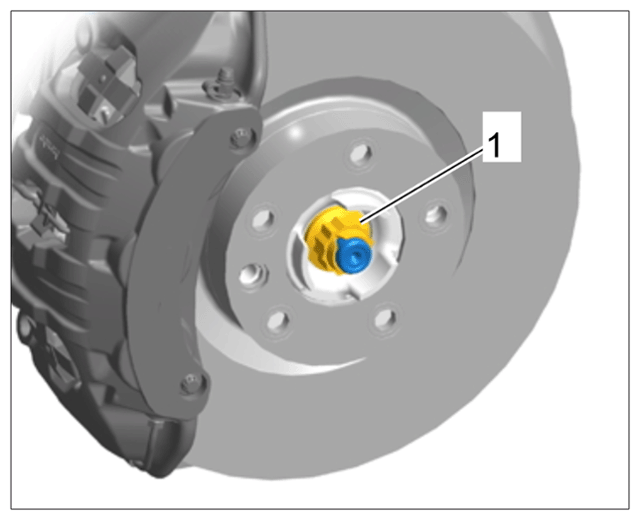

Lock nut on drive shaft (shown as an example)
- For 19-inch brake system:
Remove air guide.
> 407719 Removing and installing anti-roll bar - section on "REMOVING "
- Remove connecting link.
> 407819 Removing and installing front connecting link - section on "REMOVING "
