Removing Anti-Roll Bar
WARNING: This page is about a different variant/trim than selected.
Information
The pictures shown in this document may differ from the original.
- If installed:

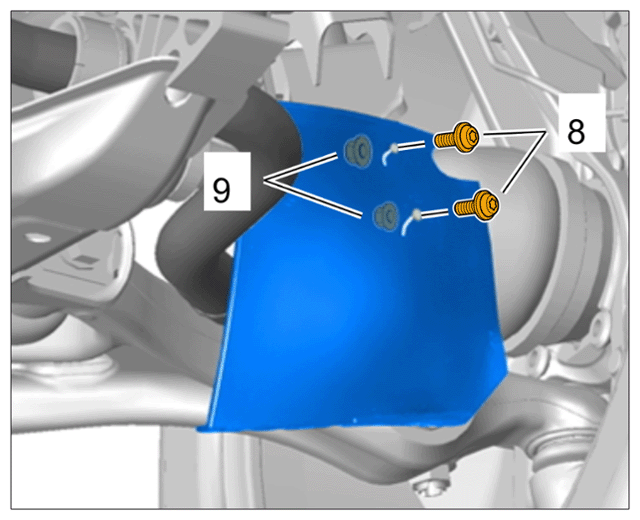

Remove the fastening screws on the air guide -8-
at the left and right. Use a suitable tool to counter the fastening nuts -9-.
Removing air guide
- Remove connecting link at the left and right of the anti-roll bar.
- Unscrew and remove the four fastening screws on the anti-roll bar and remove the clips.
- Carefully pull out the anti-roll bar.
