Removing Front Panel

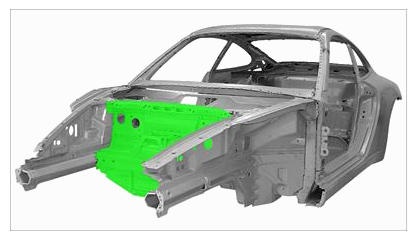

Fig 1: Identifying Front Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove end plate. → Removing Front Closing Panel
Remove floor front section. → Removing Floor Front Section
Milling off spotwelds
1. 3.1. Mill off spotwelds in areas -A, B, C- using a spotweld cutter.

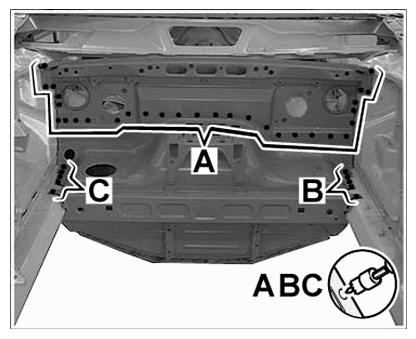

Fig 2: Identifying Spotwelds Drilling Area (A, B And C)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating spotwelds
1. 4.1. Separate spotwelds in areas -A- and -B- using a parting grinder.

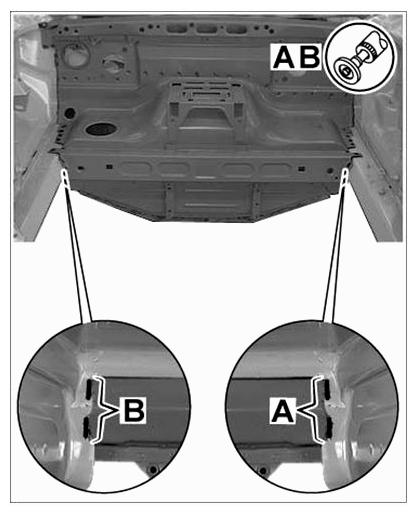

Fig 3: Identifying Spotwelds Separating Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 5.1. Mill off spotwelds in areas -A- and -B- using a spotweld cutter.

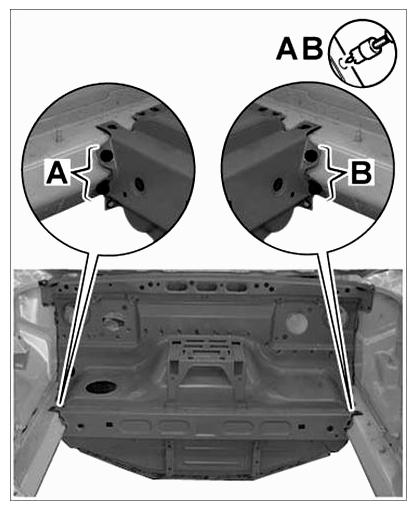

Fig 4: Identifying Spotwelds Drilling Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating inert-gas welded seams
1. 6.1. Separate inert-gas welded seams in areas -A- and -B- using a parting grinder.

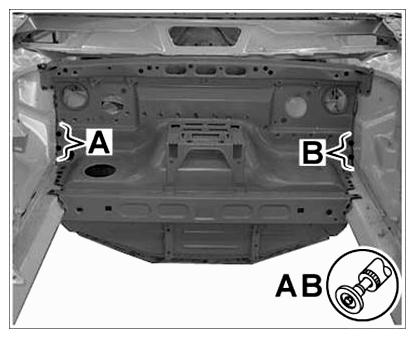

Fig 5: Identifying Spotwelds Drilling Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
