Removing Front Closing Panel

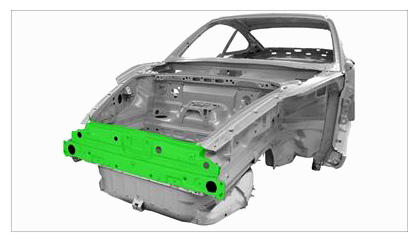

Fig 1: Front Closing Panel Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Milling off spotwelds
1. 1.1. Mill off spotwelds in area -A- using a spotweld cutter.

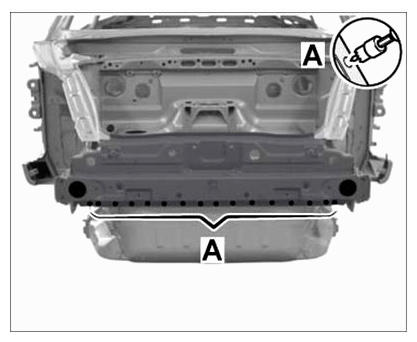

Fig 2: Identifying Spotwelds Drilling Area (A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 2.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter.

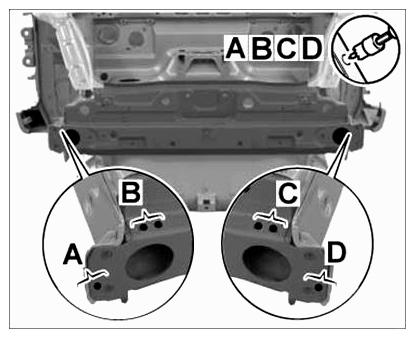

  Fig 3: Identifying Spotwelds Drilling Area (A, B, C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 3.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter.

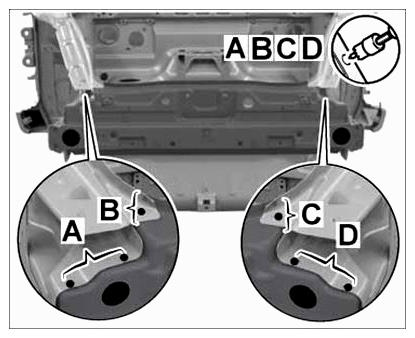

Fig 4: Identifying Spotwelds Drilling Area (A, B, C And D)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 4.1. Mill off spotwelds in areas -A, B, C, D- using a spotweld cutter.

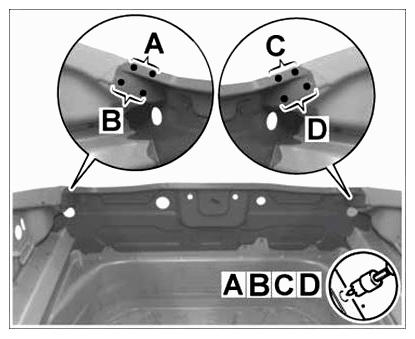

  Fig 5: Identifying Spotwelds Drilling Area (A, B, C And D)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separating spotwelds
1. 5.1. Separate spotwelds in areas -A- and -B- using a parting grinder.

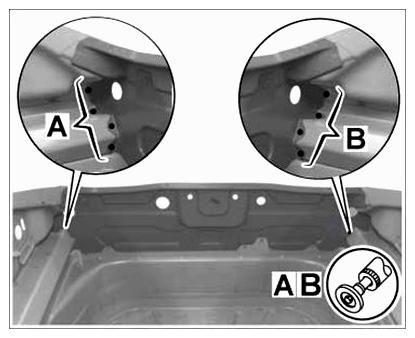

Fig 6: Identifying Spotwelds Separating Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Milling off spotwelds
1. 6.1. Mill off spotwelds in areas -A, B, C, D, E, F- using a spotweld cutter.

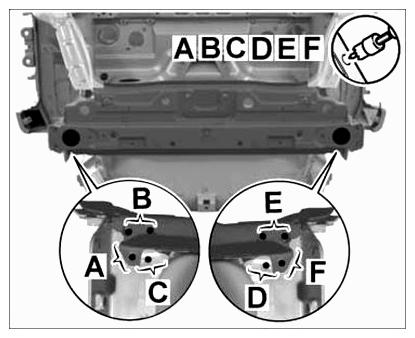

Fig 7: Identifying Spotwelds Drilling Area (A, B, C, D, E And F)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
