Removing Floor Front Section

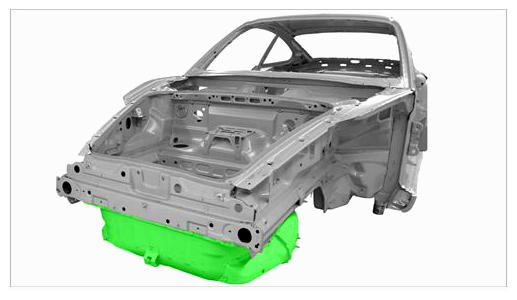

Fig 1: Floor Front Section Component Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mill off spotwelds.
1. 1.1. Mill off spotwelds applied to the front panel in area -A- (2 plate thicknesses).
2. 1.2. Mill off spotwelds in area -B- (1 plate thickness).

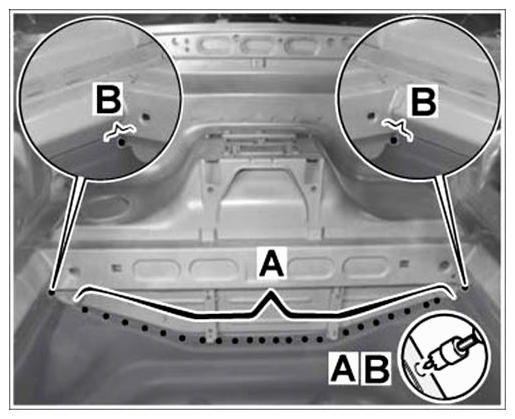

Fig 2: Identifying Spotwelds Cutting Area (A And B)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate spotwelds.
1. 2.1. Separate spotwelds applied to the right side member in area -A- from below.

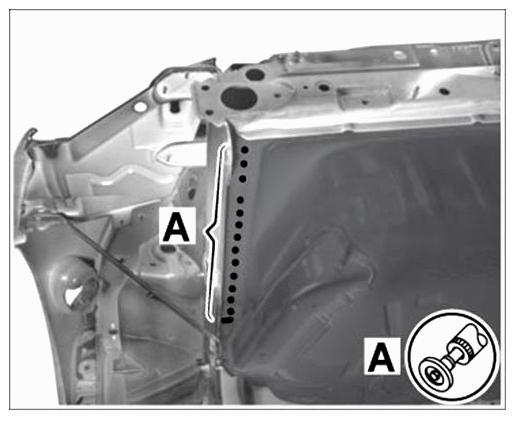

Fig 3: Identifying Spotweld Separating Area (Area A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Separate spotwelds.
1. 3.1. Separate spotwelds applied to the left side member in area -A- from below.

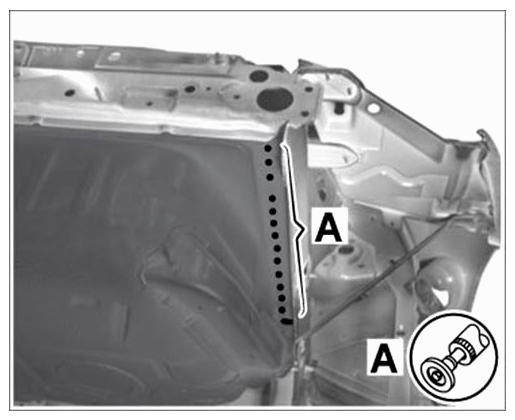

Fig 4: Identifying Spotweld Separating Area (Area A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mill off spotwelds.
1. 4.1. Mill off spot welds applied to the front closing panel in area -A- .

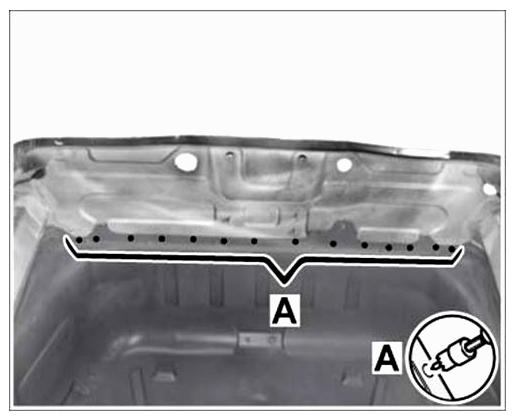

Fig 5: Identifying Spotweld Cutting Area (Area A)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
