Subsequent Work

  1. Fit centre console → Installing Centre Console .
  2. Install lower A-pillar trim panel → Installing A-pillar trim and fit the trim panel in the sill area → Installing Inner Door Sill Trim .
  3. Remove → see Fig 1 auxiliary pin from the actuator of the foot-operated parking brake and install cover on actuating module.

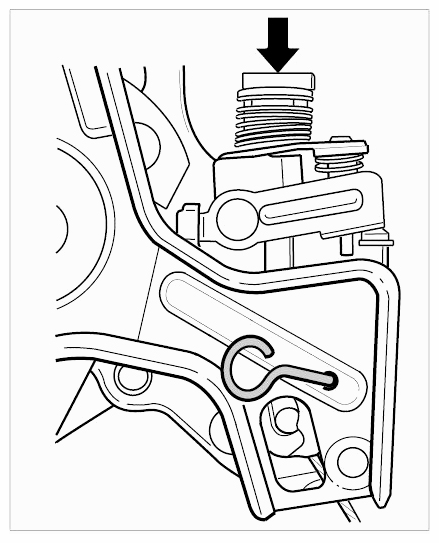

    Fig 1: Installing Cover On Actuating Module
    G09419641Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install driver's seat → Installing Front Seat .
  5. Carry out a function test on the foot-operated parking brake.
