Installing Centre Console

Fig 1: Identifying Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position the centre console.
1. 1.1. Make sure that the rear air duct is plugged in correctly -arrow- .

  Fig 3: Identifying Position Of Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 4: Installing Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten the centre console at rear.
1. 2.1. Screw in fastening screws -11- and tighten to the specified tightening torque.
  → Tightening torque: 8 Nm (6 ft lbs.)+0.8 Nm (+0.5 ft lbs.)

  Fig 5: Installing Centre Console Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Insert the mat -10- .

  Fig 6: Installing Centre Console Mat
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Push on the plug -15- until the locking tabs engage audibly.

  Fig 7: Engaging Locking Tabs
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten the centre console in the centre.
1. 3.1. Screw in fastening screws -9- and tighten to the specified tightening torque. → Tightening torque: 6 ft lbs.+0.5 ft lbs.

  Fig 8: Installing Centre Console Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten the centre console at the front.
1. 4.1. Screw in fastening screws -8- and tighten to the specified tightening torque. → Tightening torque: 6 ft lbs.+0.5 ft lbs.
2. 4.2. Clip in covers for grab handles -7- .

  Fig 9: Identifying Grab Handles Covers Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 10: Identifying Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Make the plug connection.
1. 5.1. Connect plug connection -13- .
2. 5.2. Slide in the antennae for Kessy -12- towards the front and insert.
3. 5.3. Screw in fastening screw -14- and tighten.

  Fig 11: Sliding Antennae For Kessy
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Only in vehicles with the relevant I number: install socket or cigarette lighter
1. 6.1. Connect plug -6- .

  Fig 12: Installing Socket Or Cigarette Lighter Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Clip the socket or cigarette lighter -4a- into the centre console.

  Fig 13: Clipping Socket Or Cigarette Lighter
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

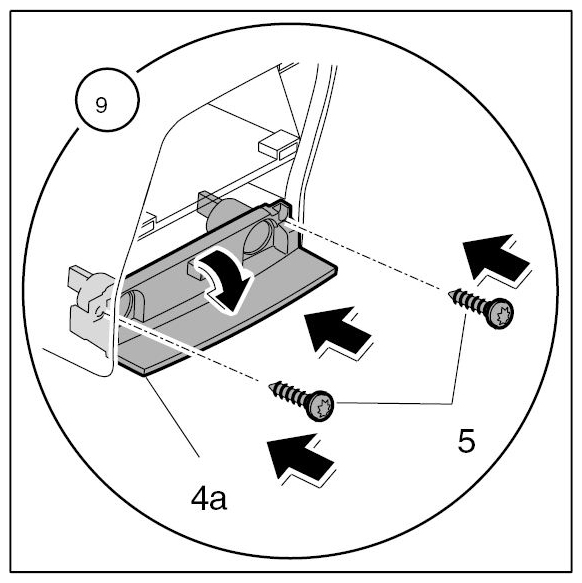

3. 6.3. Screw in fastening screws -5- and tighten to the specified tightening torque.
  → Tightening: 2 Nm (1.5 ft lbs.)+0.5 Nm (+0.5 ft lbs.).

  Fig 14: Installing Socket Or Cigarette Lighter Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install covers and cupholder.
1. 7.1. Clip covers -2, 4- and cupholder -3- into the centre console.

  Fig 15: Installing Covers And Cupholder
