Installing Main Wiring Harness - Engine Compartment On Right

Install main wire harness - dashboard area & centre console → Installing Main Wiring Harness

  1. Push line through from passenger compartment to engine compartment -Arrow A-  until rubber sleeve is felt to engage in firewall -B-  .

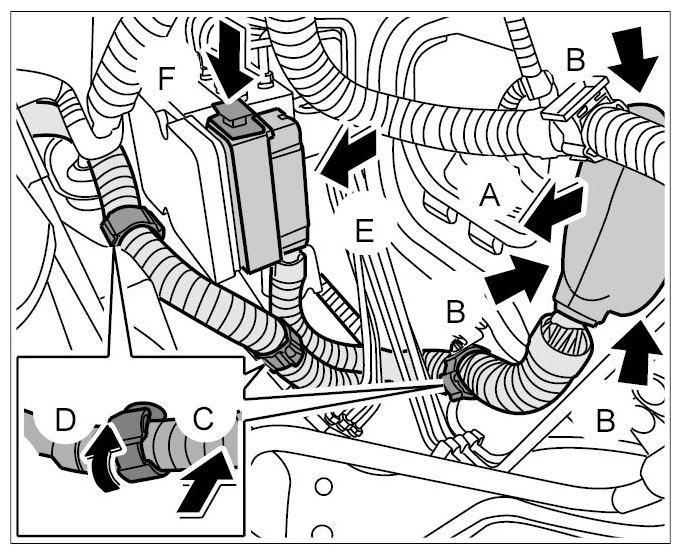

    Fig 1: Pushing Line Through From Passenger Compartment To Engine Compartment
    G09415745Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Place line in installation position -Arrow C-  and close clips -Arrow D-  .
  3. Push connector onto hydraulic unit -Arrow E-  and press in the lock -Arrow F-  until it is felt to engage.
  4. Clip in line -arrow-  .

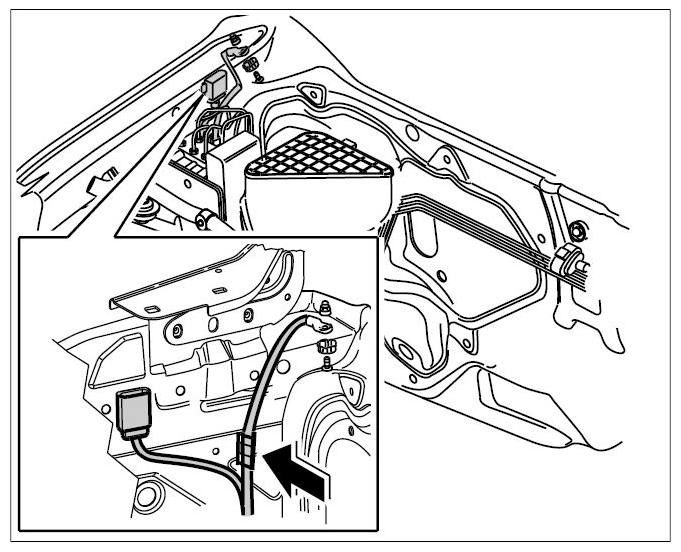

    Fig 2: Pushing Connector Onto Hydraulic Unit
    G09415746Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Press line into rubber sleeve -Arrow A-  .

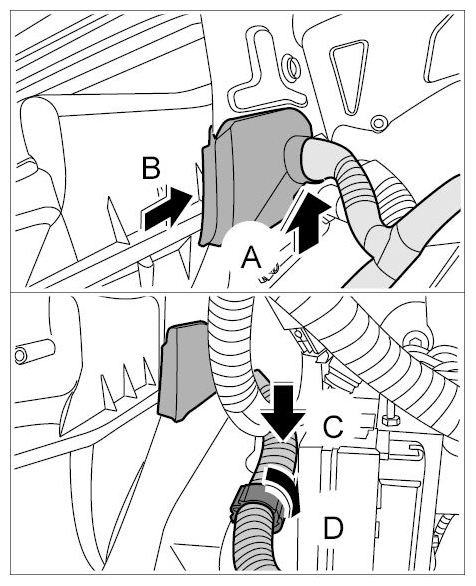

    Fig 3: Pressing Line Into Rubber Sleeve
    G09415747Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Place line with rubber sleeve in installation position -Arrow B-  .
  7. Place line in installation position -Arrow C-  and close clip -Arrow D-  until locking tabs are felt to engage.
  8. Place air intake housing in installation position -Arrow A-  and secure with the two fastening nuts -4- Tightening torque: 4.5 ftlb.  .

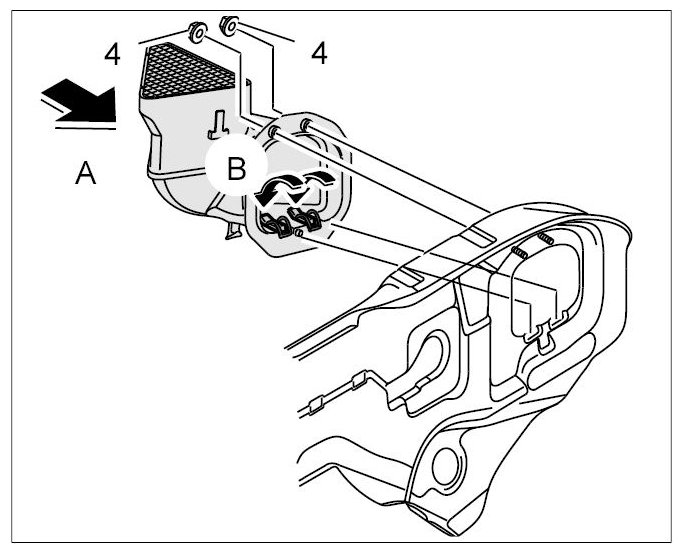

    Fig 4: Placing Air Intake Housing In Installation Position
    G09415748Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Fasten air intake housing from the inside with the holders -Arrow B-  .
  10. Place support for DME control module in installation position -Arrow A-  and screw down with fastening screw -2-  and fastening nuts -3- Tightening torque: 6 ftlb. → Tightening torque: 6 ftlb.  .

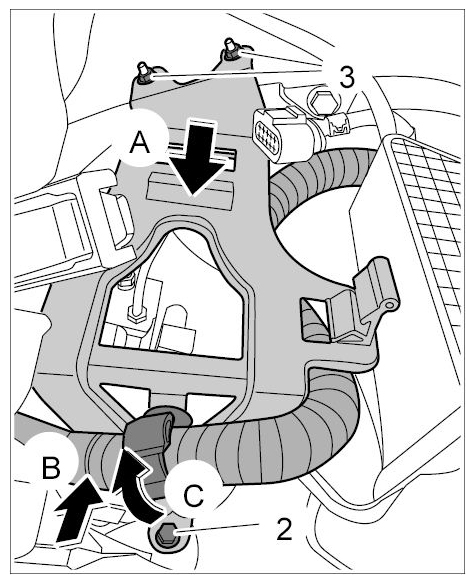

    Fig 5: Placing Support For DME Control Module In Installation Position
    G09415749Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Place line in installation position -Arrow B-  and close clip -Arrow C-  until locking tabs are felt to engage.

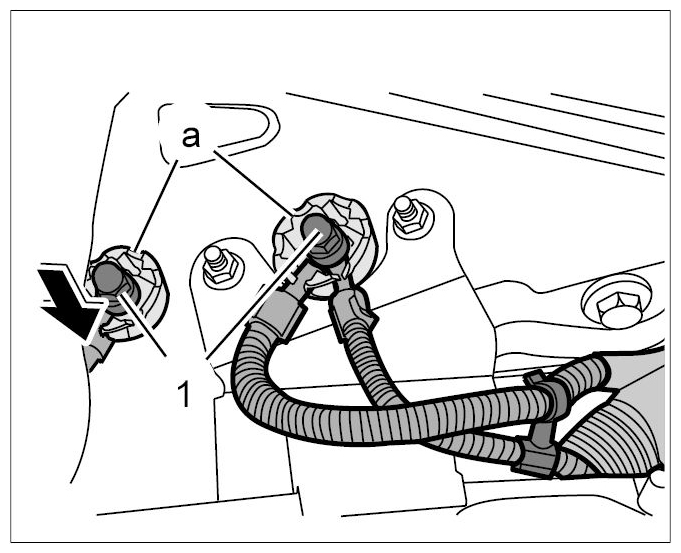

  12. Place lines with twist locks (to rear of DME control unit) -a-  on the threaded bolts -arrow-  and tighten with fastening nuts -1- Tightening torque: 6.5 ftlb.  .
    Fig 6: Placing Lines With Twist Locks (To Rear Of DME Control Unit)
    G09415750Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  13. Install DME control module → Installing Dme Control Unit .
  14. Install plenum panel at front right.

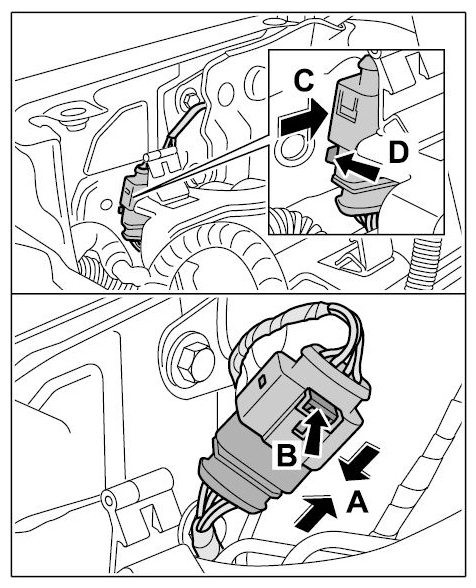

  15. Connect plug connection (right of DME control module) -Arrows A-  until locking tab -B-  is felt to engage.
    Fig 7: Connecting Plug Connection (Right Of DME Control Module)
    G09415751Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  16. Push plug connection into clip -Arrow C-  until locking tab -D-  is felt to engage.
  17. Place line (upper side member) in installation position -Arrows A-  and close clips -Arrows B-  until locking tabs are felt to engage.

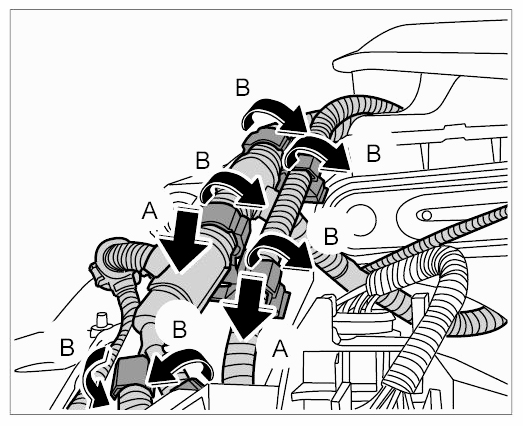

    Fig 8: Placing Line (Upper Side Member) In Installation Position
    G09441320Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  18. Fit filler neck of reservoir for windscreen washer system → Installing Reservoir For Windscreen Washer System .

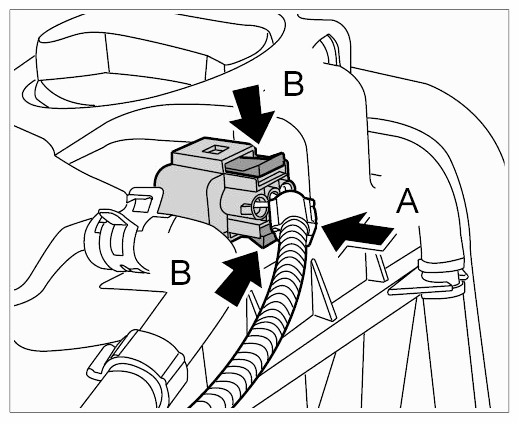

  19. Push connector onto coolant reservoir -Arrow B-  until locking tabs -B-  are felt to engage.
    Fig 9: Pushing Connector Onto Coolant Reservoir
    G09441321Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  20. Push connector onto air flow sensor -Arrow A-  until locking tab -B-  is felt to engage.

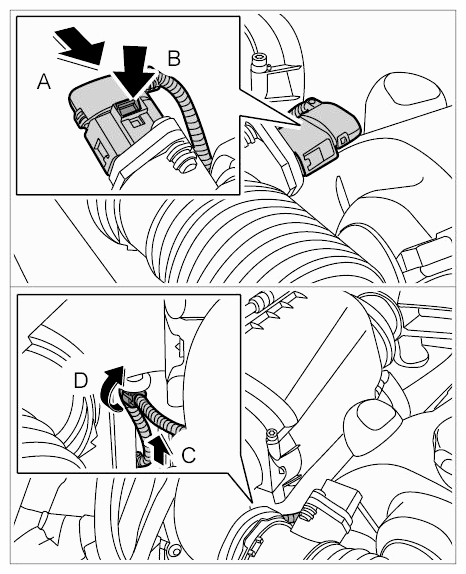

    Fig 10: Pushing Connector Onto Air Flow Sensor
    G09441322Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  21. Place line in installation position -Arrow C-  and close clip -Arrow D-  until locking tab is felt to engage.
  22. Place line (wheel housing) in installation position -Arrow A-  and close clips -Arrow B-  until locking tabs are felt to engage.

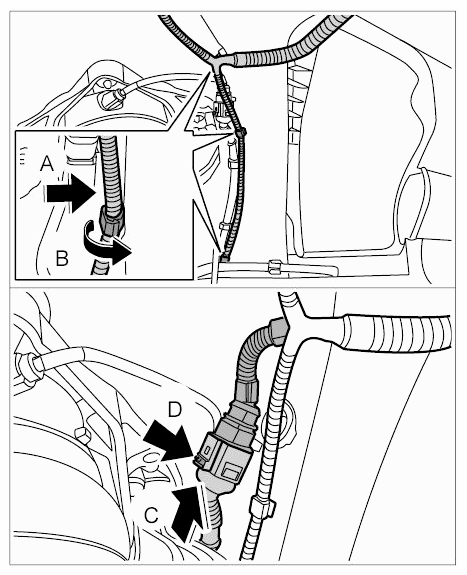

    Fig 11: Placing Line (Wheel Housing) In Installation Position
    G09441323Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  23. Connect plug connection for ABS sensor and brake pad wear indicator -Arrow C-  until locking tabs -D-  are felt to engage.

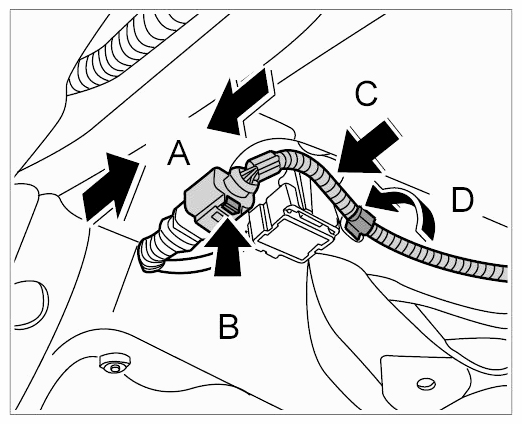

  24. Push on connector of lateral acceleration sensor (wheel housing) -Arrow A-  until locking tab -B-  is felt to engage.
    Fig 12: Pushing On Connector Of Lateral Acceleration Sensor (Wheel Housing)
    G09441324Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  25. Place line in installation position -Arrow C-  and close clip -Arrow D-  until locking tab is felt to engage.

    Only for vehicles with automatic headlight levelling system

    Fig 13: Pushing Connector Onto Angle Sensor (Wheel Suspension)
    G09441325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

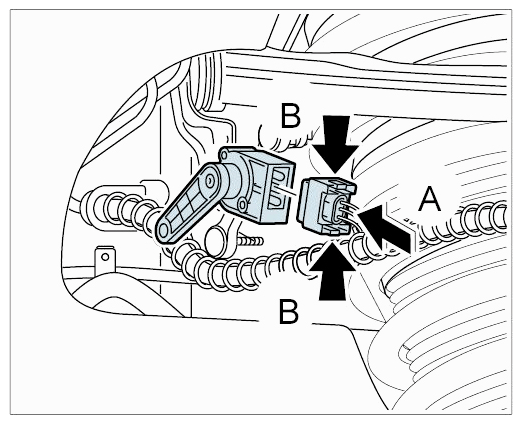

  26. Push connector onto angle sensor (wheel suspension) -Arrow A-  until locking tabs -B-  are felt to engage.
  27. Connect plug to washer-fluid reservoir -Arrows A-  until locking lug -B-  is felt to engage.
    Fig 14: Connecting Plug To Washer-Fluid Reservoir

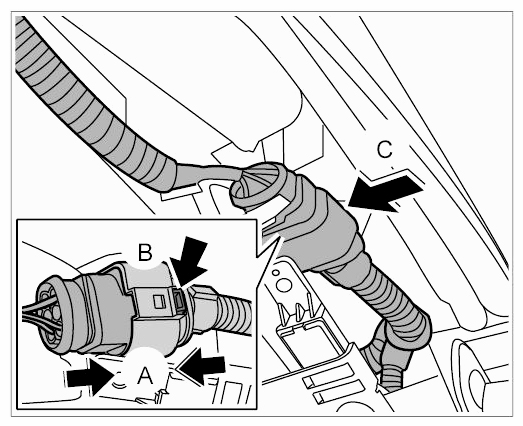

    G09441326Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  28. Insert line into bracket -Arrow C-  .
  29. Push connector onto headlight housing -Arrow A-  until locking tab -B-  is felt to engage.
    Fig 15: Placing Lines In Installation Position
    G09441327Courtesy of PORSCHE CARS NORTH AMERICA, INC.

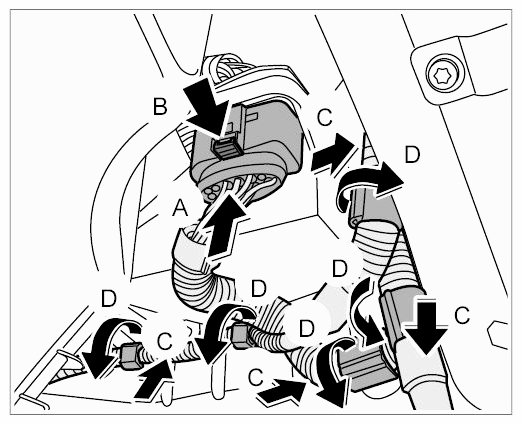

  30. Place lines in installation position -Arrows C-  and close clips -Arrows D-  until locking tabs are felt to engage.
  31. Push connector onto airbag sensor -Arrow A-  until the latch is felt to engage.
    Fig 16: Pushing Connector Onto Airbag Sensor
    G09441328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

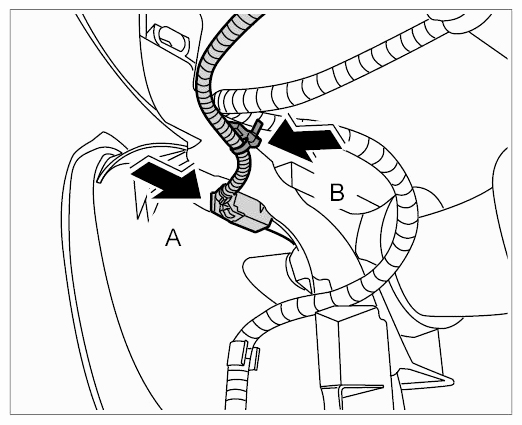

  32. Push line and holder onto lock carrier -Arrow B-  .

    Fit front apron → Installing front apron .

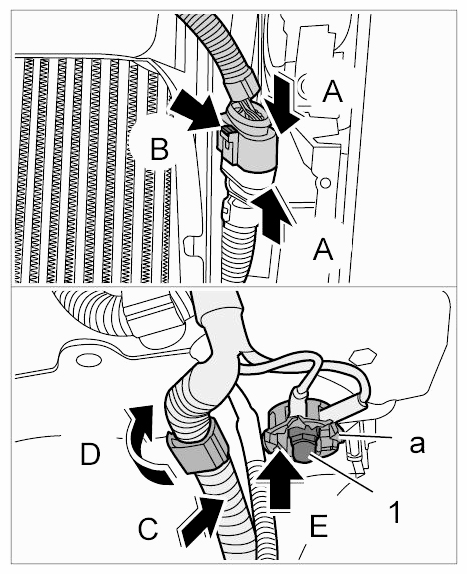

  33. Connect plug connection to front apron -Arrows A-  until locking tab -B-  is felt to engage.
    Fig 17: Connecting Plug Connection To Front Apron
    G09441329Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  34. Place line in installation position -Arrow C-  and close clip -Arrow D-  until locking tab is felt to engage.
  35. Fit ground straps together with twist lock -a-  on the threaded bolt (front side member) -Arrow E-  and secure with fastening nut -1- Tightening torque: 6.5 ftlb.  .

    Only for vehicles with tyre pressure monitoring system

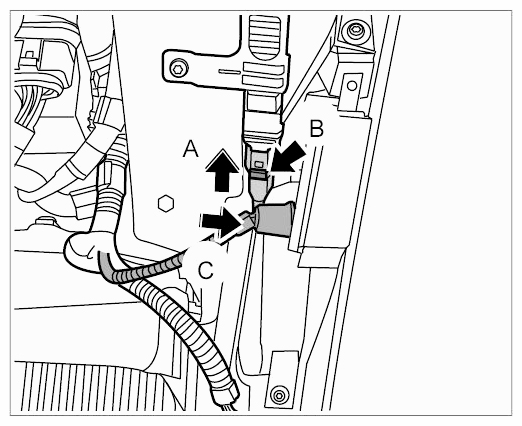

    Fig 18: Pushing Connector Onto Antenna For Tyre Pressure Monitoring System (Wheel Housing)
    G09441330Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  36. Push connector onto antenna for tyre pressure monitoring system (wheel housing) -Arrow A-  until locking tab -B-  is felt to engage.

    Install front right main headlight → Installing Main Headlights

    Install right front wheel housing liner → Installing front wheel housing liner .
