Installing Reservoir For Windscreen Washer System

Ensure water and electrical lines are laid properly.
Insert container in slot in body at 60° to the horizontal.

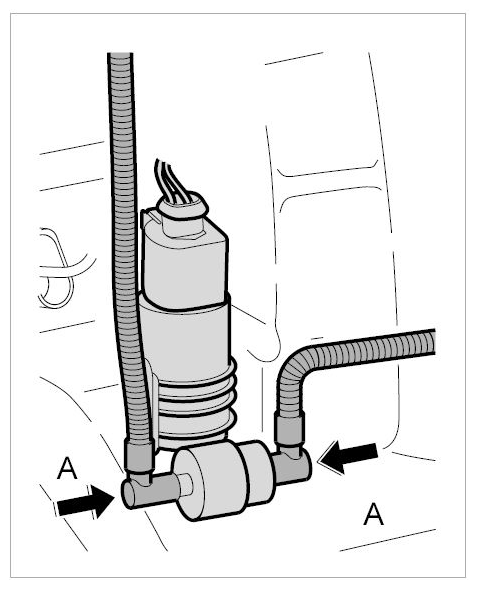

Connect the two water lines to the pump connections -arrows A- .

Fig 1: Connecting Water Lines To Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

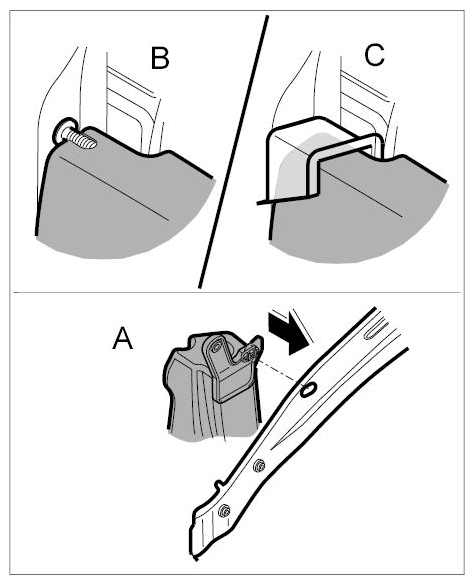

Mount water reservoir in vehicle body -A- and press forwards in the slot.

Fig 2: Mounting Water Reservoir In Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

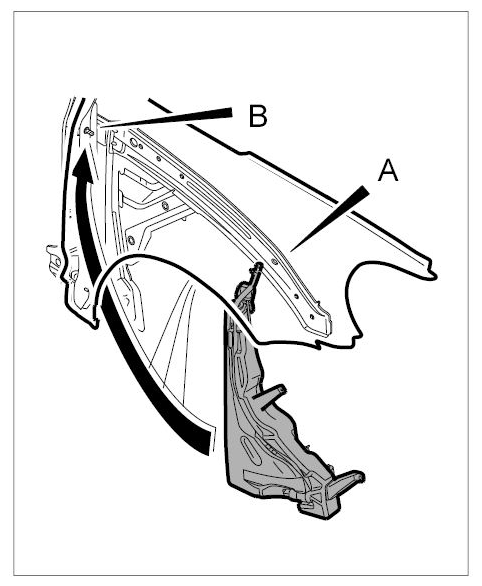

Pivoting container upwards

Fig 3: Pivoting Container Upwards
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
After pivoting up, press the container toward the rear

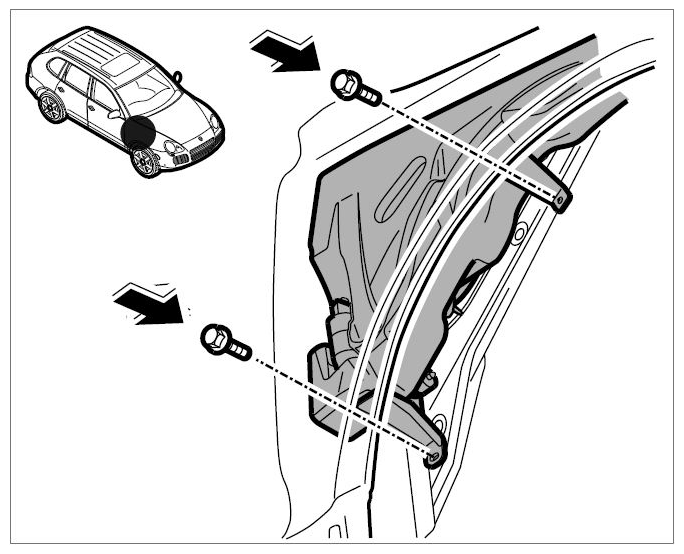

Secure container with the two fastening screws. → Tightening torque: 4.5 ftlb.

Fig 4: Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

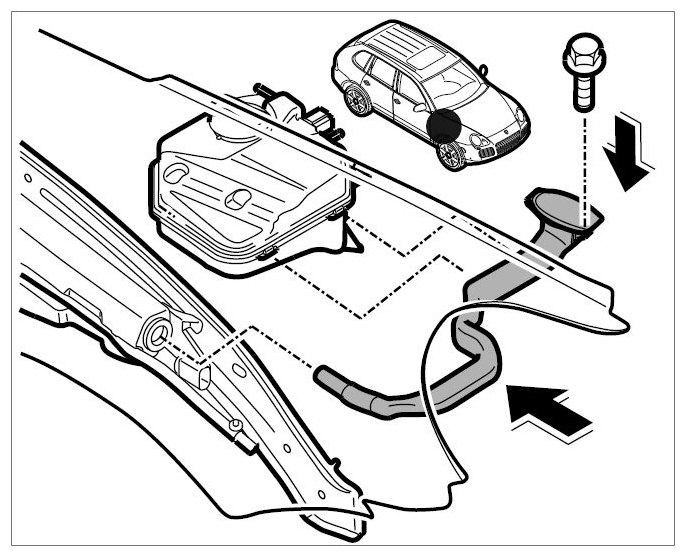

Slide filler necks into water reservoir, using soap suds. Fit connection piece to coolant reservoir and secure with fastening screw. → Tightening torque: 1.5 ftlb.

Fig 5: Installing Filler Neck
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

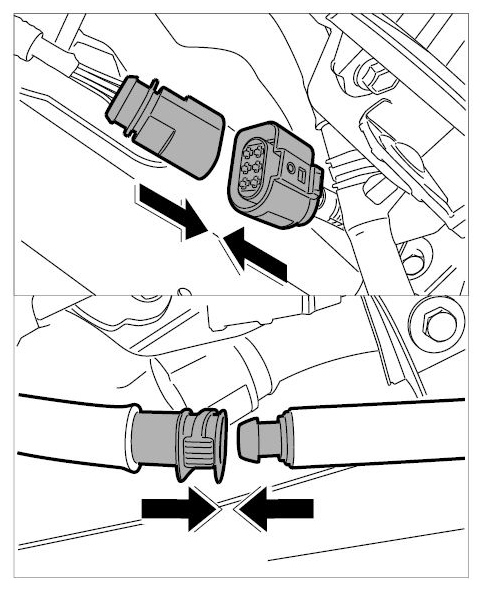

Connect water line for headlight washer and electric plug connection.

Fig 6: Connecting Water Line For Headlight Washer And Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
