Installing Dashboard Cover On The Passenger's Side

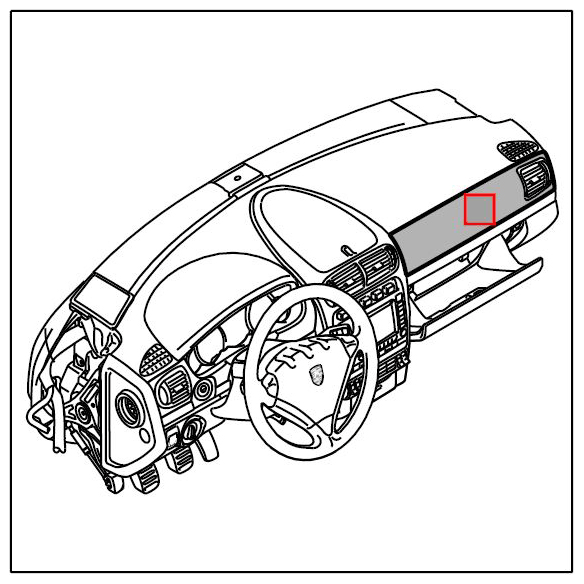

Fig 1: Identifying Dashboard Cover On Passenger's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Install dashboard cover on the passenger's side. To do this, insert the cover for the instrument panel on the passenger's side -1-  upward with the holding strap -3- -arrow A-  and swivel downwards -arrow B-  .

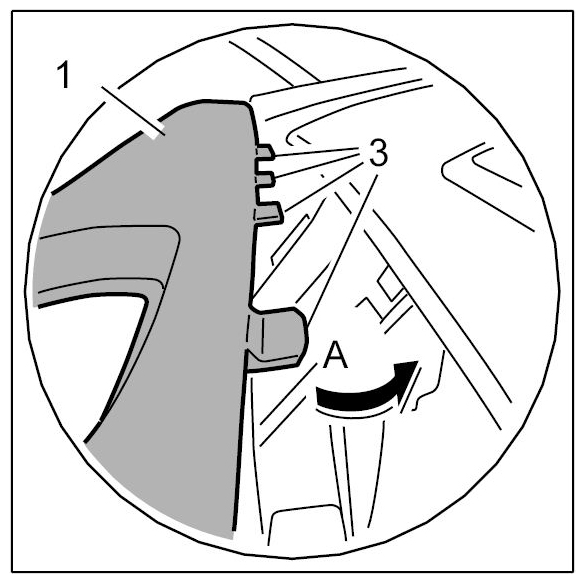

   Fig 2: Inserting Cover For Instrument Panel On Passenger's Side (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

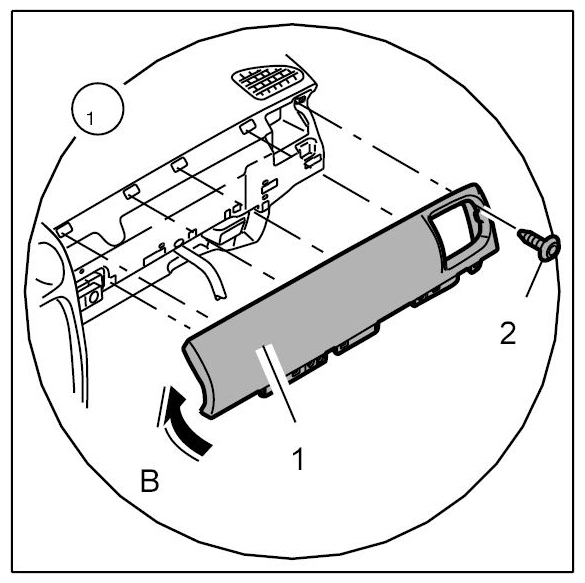

   Fig 3: Inserting Cover For Instrument Panel On Passenger's Side (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw in -2-  fastening screw.
   Fig 4: Tightening Fastening Screw

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install air vent at door. → Installing Air Vent At Door
4. Install glove compartment. → Install The Glove Compartment
5. Install trim strips for dashboard on the passenger's side. → Installing Trim Strips For The Dashboard On The Passenger's Side
