Installing Air Vent At Door

  1. Position air vent at outer edge from the side and press into instrument panel. Push air vent in until it can be felt to engage.
  2. Connect electrical plug connection.

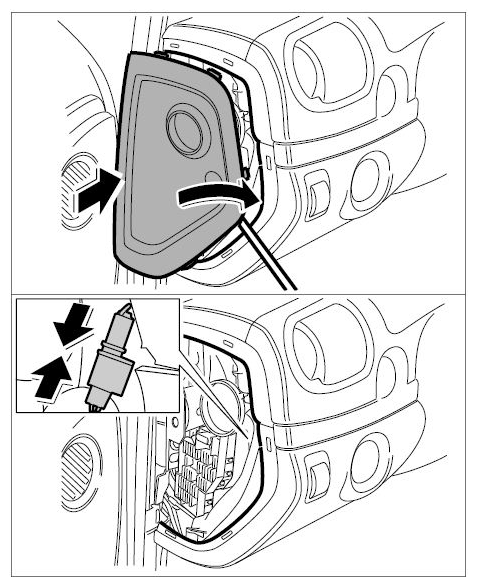

    Fig 1: Pushing Plug Connection Together
    G09414452Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Position the cover and press on until the cover clips engage.
