Installing Trim Strips For The Dashboard On The Passenger's Side

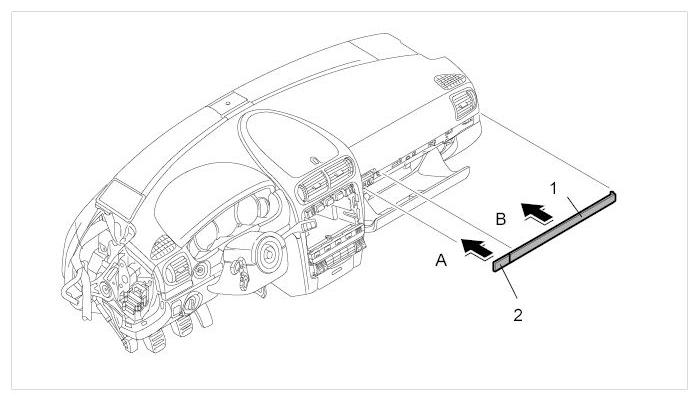

  1. Clip in the cover for the glove compartment lock -2- -arrow A-  .
    Fig 1: Installing Plastic Wedge
    G09413255Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clipping in the trim strip on the passenger's side -1- -arrow B-  .
    Fig 2: Clipping Trim Strip On Passenger's Side
    G09413256Courtesy of PORSCHE CARS NORTH AMERICA, INC.
