Removing inner sill

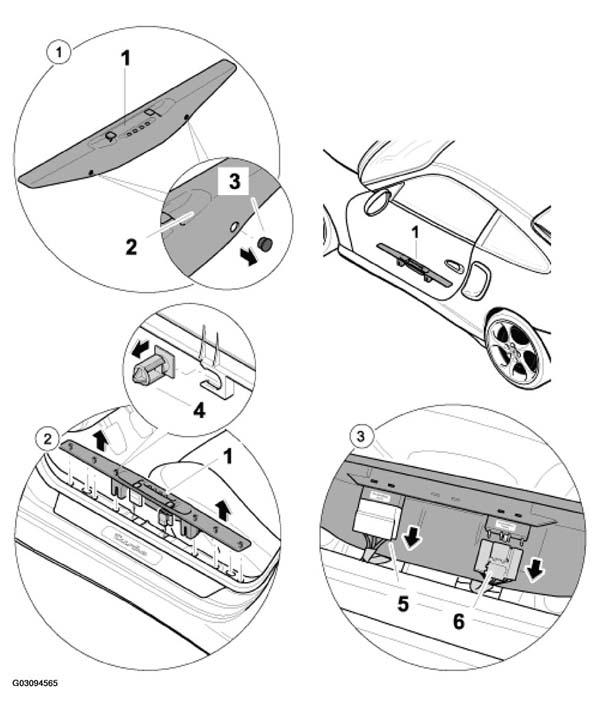

Fig 1: Removing Inner Sill (Driver's Side)
G03094565Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING INNER SILL (DRIVER'S SIDE)

No. Procedure Instructions
1 Undoing hexagon socket head bolts -2-  Remove plastic plugs -3-2-
2 Removing the sill cover -1-  Lift sill cover -1-4-
3 Pulling off plug connections -5, 6-  Pull off plug connections -5, 6-
Refer to DISASSEMBLING RELEASE FOR FRONT COVER
Refer to DISASSEMBLING RELEASE FOR REAR LID
