Disassembling release for front cover
DISASSEMBLING RELEASE FOR FRONT COVER

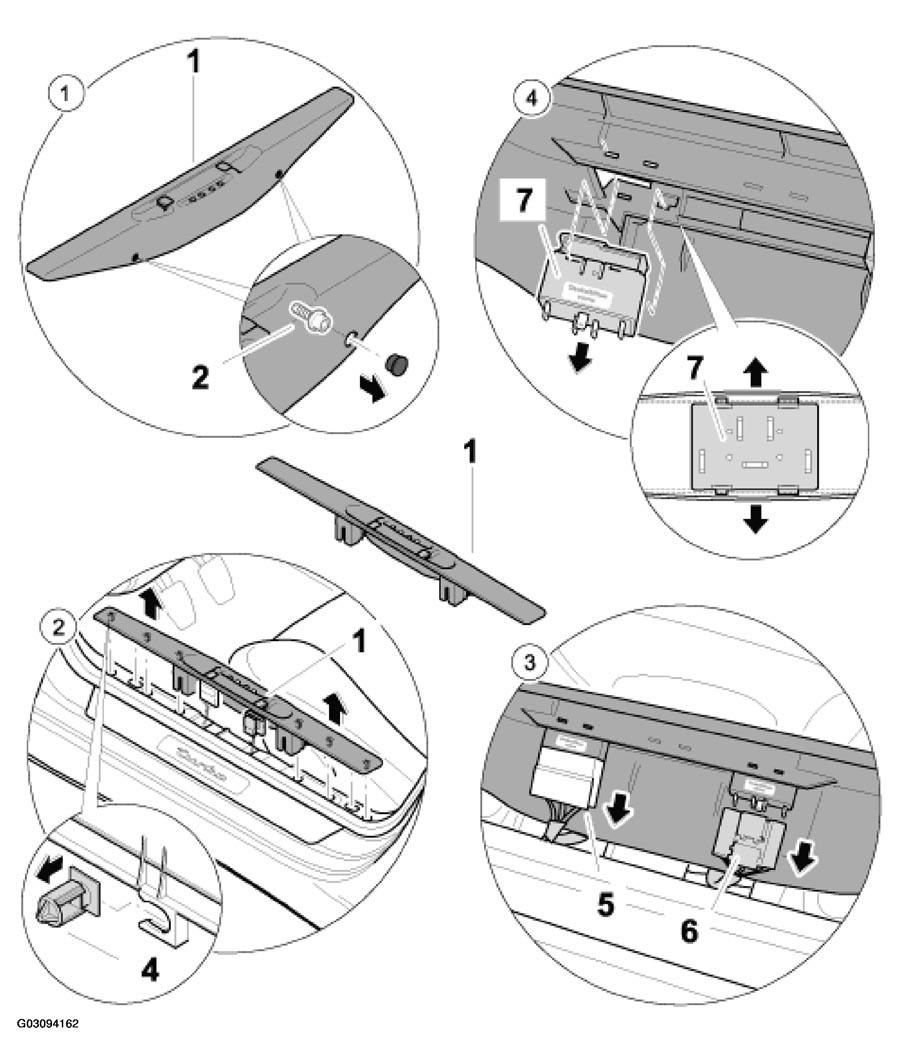

| No. | Procedure | Instructions |
|---|---|---|
| 1 | Releasing hexagon socket head bolts -2- | Remove plastic plugs -3-2- |
| 2 | Removing sill -1- | Lift sill -1-4- |
| 3 | Pulling off plug connections -5, 6- | Pull off plug connections -5, 6- |
| 4 | Removing actuating switches for front lid -7, 8- | Press the fastening ribs of the sill -arrows-7- |
