Disassembling release for rear lid

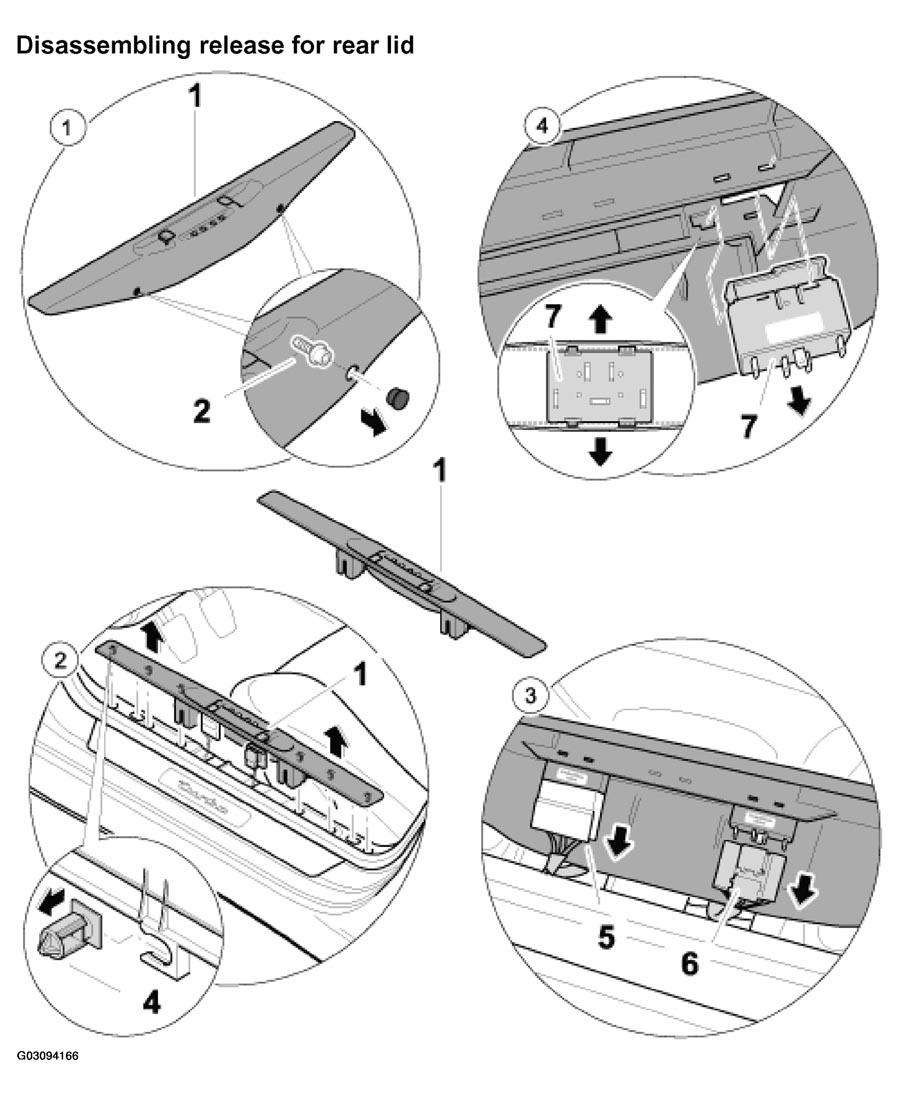

Fig 1: Disassembling Release For Rear Lid
G03094166Courtesy of PORSCHE OF NORTH AMERICA, INC.
DISASSEMBLING RELEASE FOR REAR LID

No.  Procedure  Instructions
1 Undoing hexagon socket head bolts -2-  Remove plastic plugs -3-2-
2 Removing sill -1-  Lift sill -1-4-
3 Pulling off plug connections -5, 6-  Pull off plug connections -5, 6-
4 Removing actuating switches for rear lid -7, 8-  Press the fastening ribs of the sill -arrows-7-
