Removing And Installing Floor Covering
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

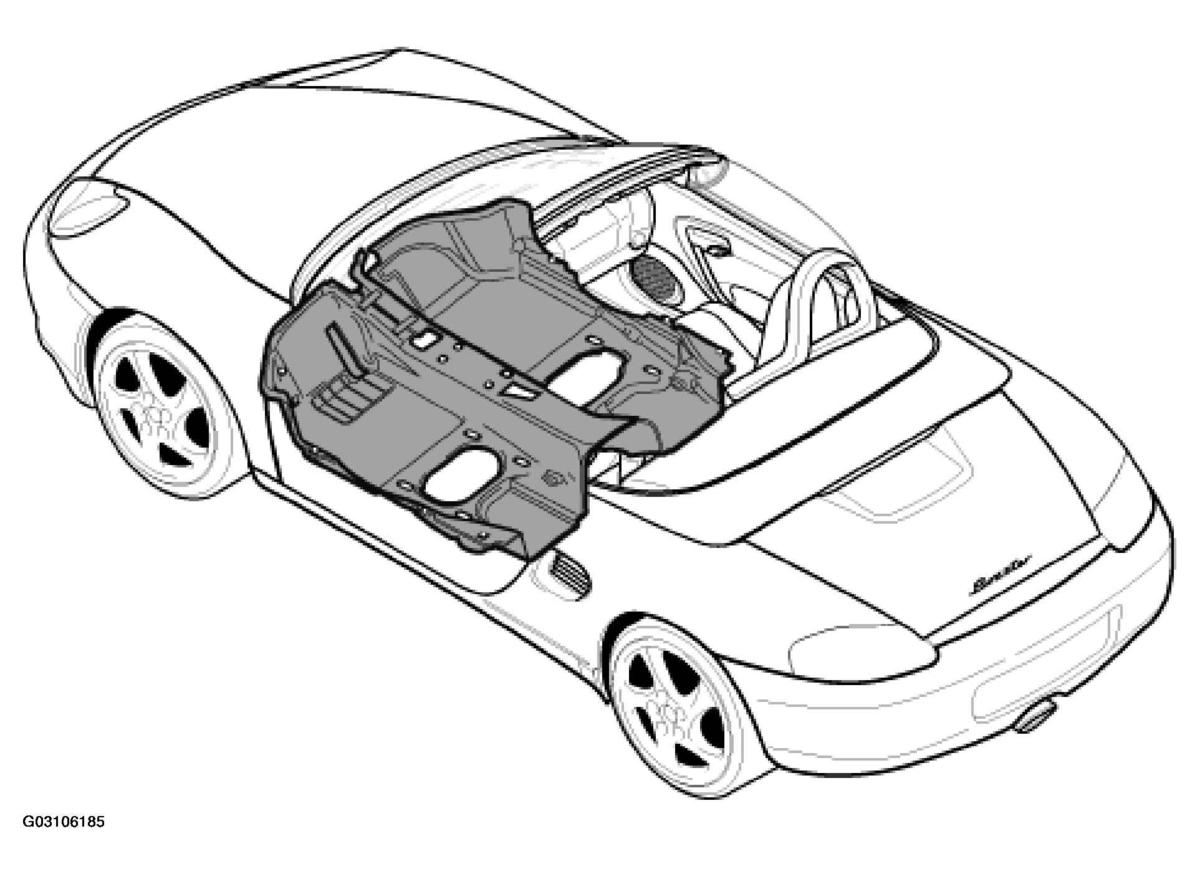

- Before removing the floor covering -11- , the following components must be removed. See Fig 2 .
See REMOVING AND INSTALLING FRONT SEAT .
Refer to REMOVING AND INSTALLING CENTRE CONSOLE .
Refer to REMOVING AND INSTALLING CENTER CONSOLE (FRONT SECTION) .
Refer to REMOVING AND INSTALLING FRONT THREE-POINT BELT .
REMOVING AND INSTALLING PROCEDURE FOR CENTER CONSOLE

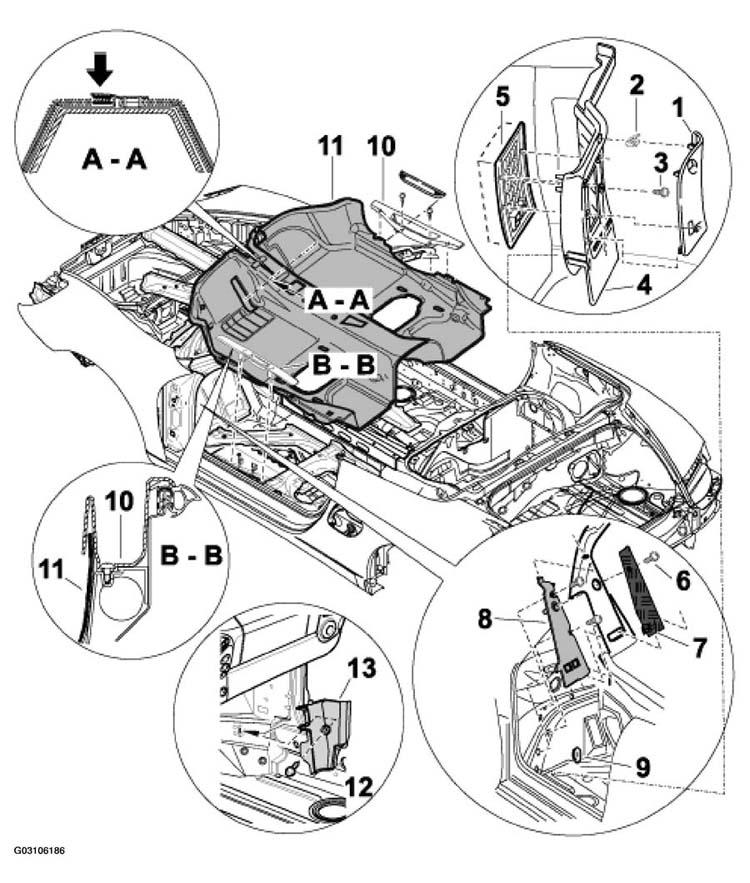

| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Plastic cover | 1 | Pull off plastic cover of the handle hole. | Attach plastic cover. | ||
| 2(1) | Plug-in terminal | 1 | ||||
| 3(1) | Fastening screw | 4 | Unscrew. | Screw in. | ||
| 4(1) | Fuse box covering frame | 1 | ||||
| 5(1) | Fuse box | 1 | ||||
| 6(1) | Fastening screw | 3 | ||||
| 7(1) | Foot rest cover | 1 | Unscrew fastening screws -6-7- (1) | Install the foot rest cover -7-11- (1) | ||
| 8(1) | Foot rest | 1 | Install the foot rest -8-11- (1) | |||
| 9(1) | Grommet | 1 | ||||
| 10(1) | Assembling release for lid | Refer toDISASSEMBLING AND ASSEMBLING RELEASE FOR REAR LID
. Refer to REMOVING AND INSTALLING INNER SILL . |
Refer to
Disassembling and assembling release for lid -11-10- (1) Refer to REMOVING AND INSTALLING INNER SILL . Insert floor covering |
|||
| 11(1) | Floor covering | 1 | ||||
| 12(1) | Fastening screw | 1 | ||||
| 13(1) | Holder, floor left | 1 | Install the holder floor left-13-11- (1) | |||
|
||||||
