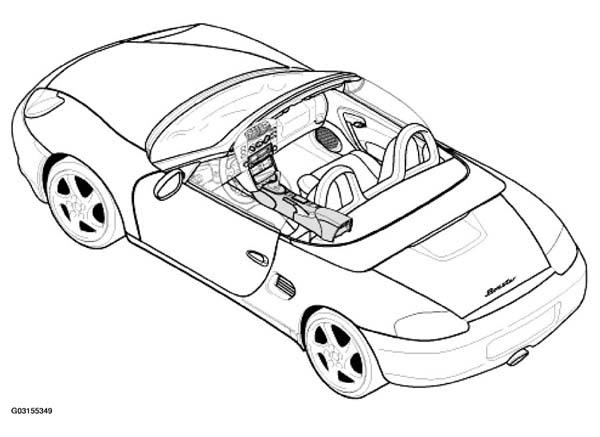

Removing and installing centre console
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before removal of the centre console, the centre console (front) must be partly disassembled. For this purpose, remove both the front covers and the front trim. See REMOVING AND INSTALLING CENTER CONSOLE (FRONT SECTION) .
REMOVING & INSTALLING CENTER CONSOLE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|

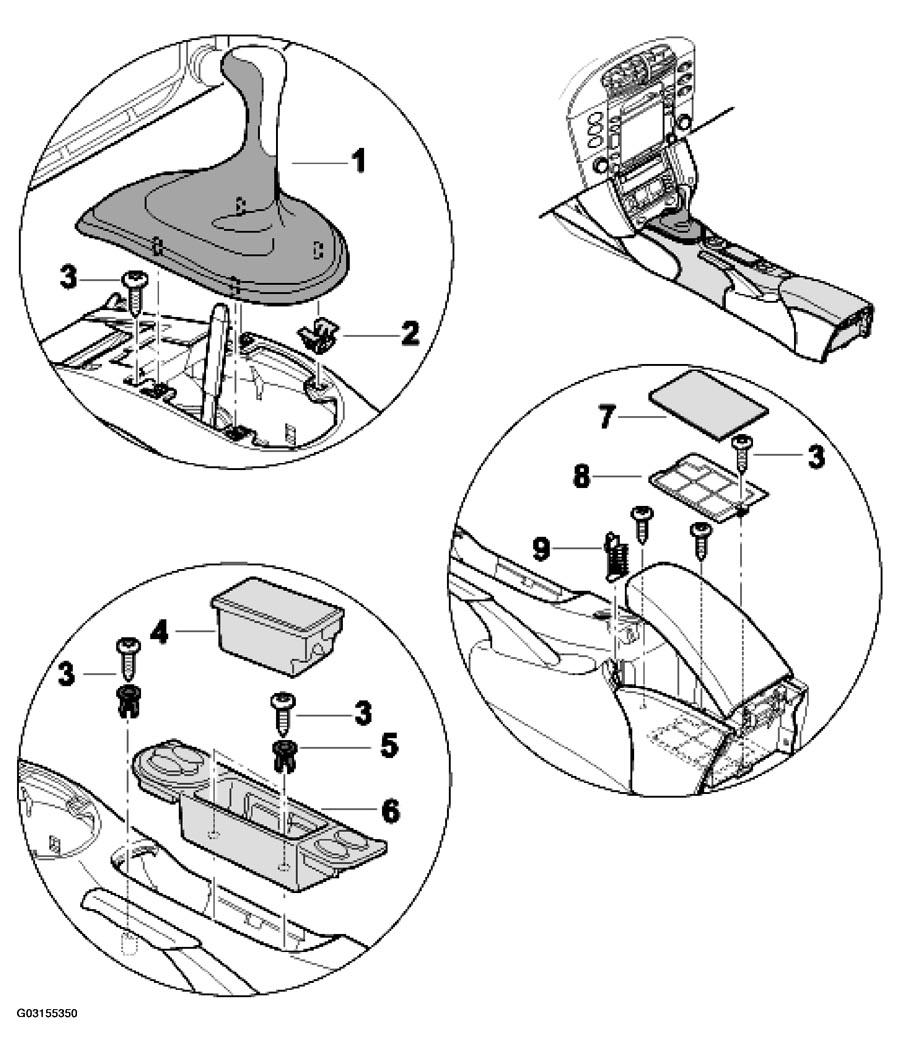

| 1 | Shift lever knob | 1 | Disengage from the clips -2-1- . See Fig 2 . | Push on. |
| 2 | Clip | 4 | Inspect and replace if necessary. | |
| 3 | Fastening screws | 3 | Undo. | Screw in. |
| 4 | Ashtray insert | 1 | Lift out. | Press in. |
| 5 | Expanding nut | 2 | Press out. | Press in. |
| 6 | Ashtray retaining bracket | 1 | Unclip the ashtray retaining bracket -6- . See Fig 2 . | Connect the electrical plug connections, secure the ashtray retaining bracket -6-3- . See Fig 2 . |
| 7 | Rubber insert | 1 | ||
| 8 | Floor oddments tray | 1 | Undo fastening screw -3-8- . See Fig 2 . | Position the floor oddments tray -8-3- . See Fig 2 . |
| 9 | Coin box | 1 | Unclip the coin box -9-3- . See Fig 2 . | Tighten the fastening screw -3-9- . See Fig 2 . |
