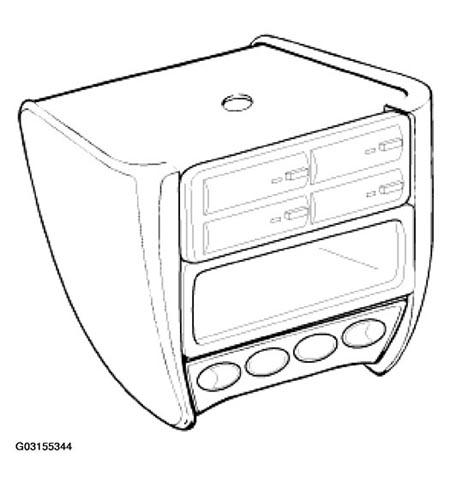

REMOVING & INSTALLING CENTER CONSOLE (FRONT SECTION)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|

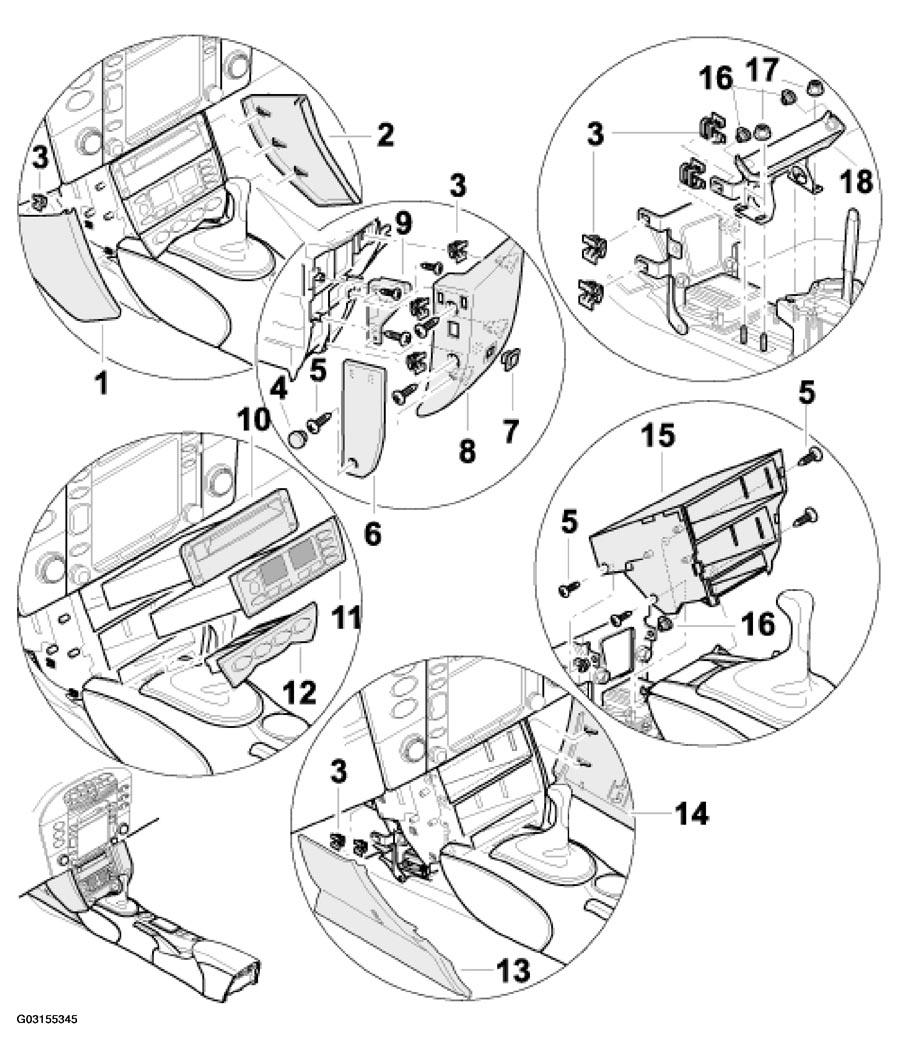

| 1 | Cover, front left | 1 | Unclip the front left cover -1- . See Fig 2 . | Position the front cover -1-15-3- . See Fig 2 . |
| 2 | Cover, front right | 1 | Unclip the front right cover -2- . See Fig 2 . | Position the front cover -2-15-3- . See Fig 2 . |
| 3 | Clip | 10 | Inspect clip -3- . See Fig 2 . | |
| 4 | Cover cap (telephone trim panel) | 1 | ||
| 5 | Fastening screw | 9 | ||
| 6 | Telephone trim panel | 1 | Insert a wire into the hole of the cover cap -4-5-8- . See Fig 2 . | Insert the locking tabs of the telephone trim panel into the front cover -8-5-2.3 Nm (1.5 ftlb.)-4- . See Fig 2 . |
| 7 | Installation frame for (telephone handset) | 1 | ||
| 8 | Cover, front left (telephone carrier) | 1 | Unscrew fastening screws -5- . See Fig 2 . | Position cover at the centre console at the front, clip in at the side and fasten with the fastening screws -5-2.3 Nm (1.5 ftlb.)- . See Fig 2 . |
| 9 | Adapter | 1 | Unscrew fastening screws -5- . See Fig 2 . | Position the adapter at the centre console at the front -9-5-2.3 Nm (1.5 ftlb.)- . See Fig 2 . |
| 10 | Combi-single CD drive for navigation | 1 | See: Refer to REMOVING AND INSTALLING THE NAVIGATION UNIT | |
| 11 | Heating/air-conditioning control | 1 | See: Refer to Removing and installing the heating/air-conditioning control | |
| 12 | Front trim | 1 | Unclip the front trim -12- . See Fig 2 . | Connect the electrical connection, position the front trim -12-15- . See Fig 2 . |
| 13 | Cover, left | 1 | Unclip the left cover -13- . See Fig 2 . | Position the right cover -13-3- . See Fig 2 . |
| 14 | Cover, right | 1 | Unclip the right cover -14- . See Fig 2 . | Position the right cover -14-3- . See Fig 2 . |
| 15 | Centre console (front section) | 1 | Undo fastening screws -5-15- . See Fig 2 . | Position the front of the centre console -15-18-5- . See Fig 2 . |
| 16 | Plug-in nut | 4 | Inspect and replace if necessary. | |
| 17 | Collar nut | 4 | Tightening torque: -10 Nm (7.5 ftlb.)- | |
| 18 | Holder | 1 |
