Replacing microswitch and interior light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replacing microswitch and interior light
    NOTE:
    • In the case of a defective microswitch, the complete wiring harness -4- must be replaced! See Fig 1 .
    1. See REMOVING GLOVE COMPARTMENT  .
    2. On the retaining bracket -2-  , press the locking tabs -A-  apart. Guide out the microswitch -5-  . See Fig 1 .
    3. Insert a plastic spatula into the side of the interior light -1-  and press out. Disconnect the electrical plug connection. See Fig 1 .

      2 - Installing microswitch and interior light

    4. Plug in the electrical plug connection of the interior light -1-  . Press the interior light -1-  into the cut-out of the glove compartment. See Fig 1 .
    5. Press the microswitch -5-  into the retaining bracket -2-  . Note the coding of the microswitch. See Fig 1 .
    6. To fit the glove compartment, engage the electrical lead -4-  into the clip -3-  . See Fig 1 .
    7. See INSTALLING GLOVE COMPARTMENT  .

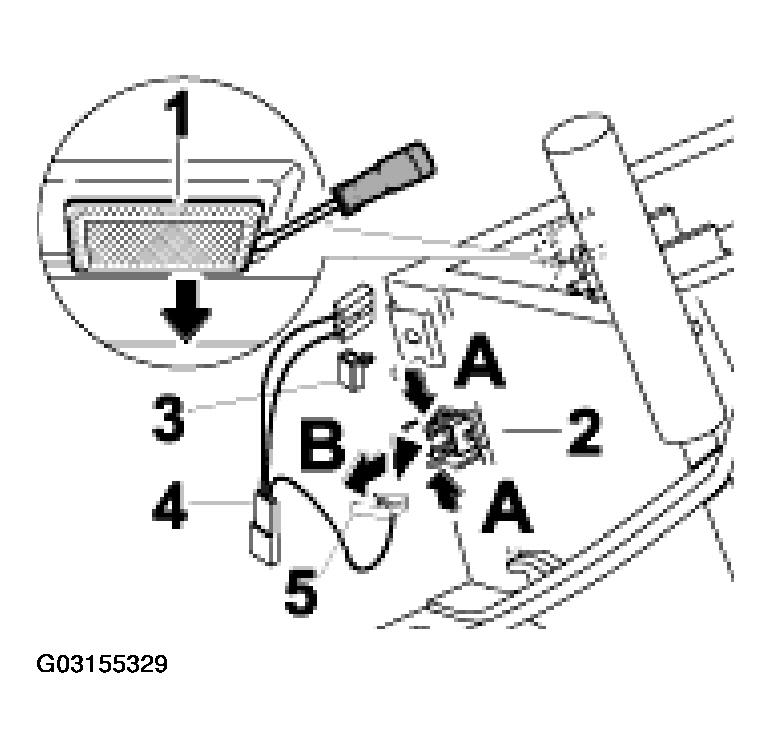

    2. Fig 1: Replacing Microswitch & Interior Light
    G03155329Courtesy of PORSCHE OF NORTH AMERICA, INC.
